Καταστροφέας Χόρτων AS 62 4T B&S

Categories

Powerful and agile – AS 62 4T B&S

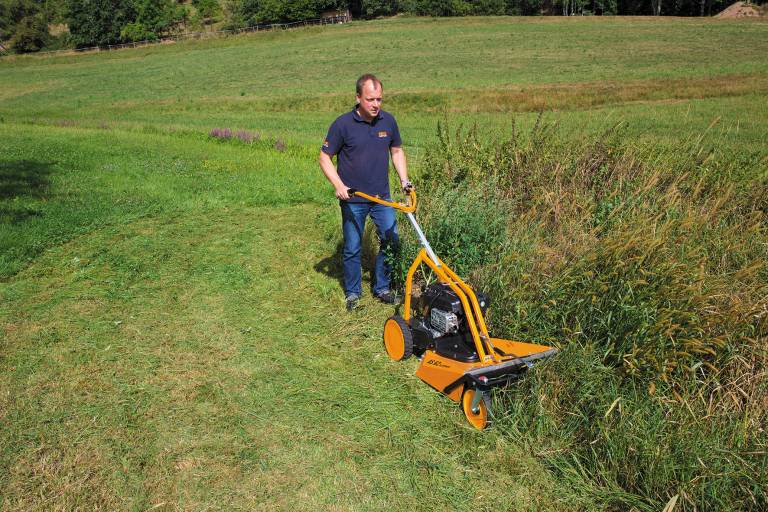

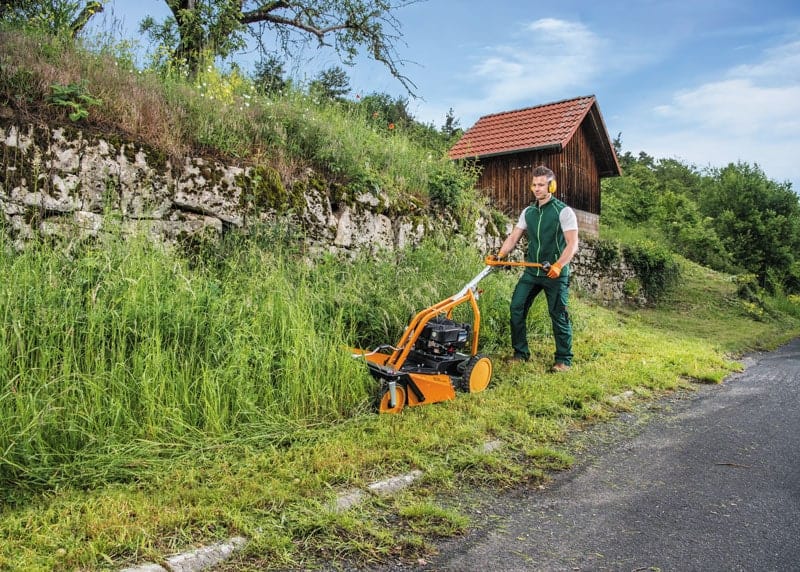

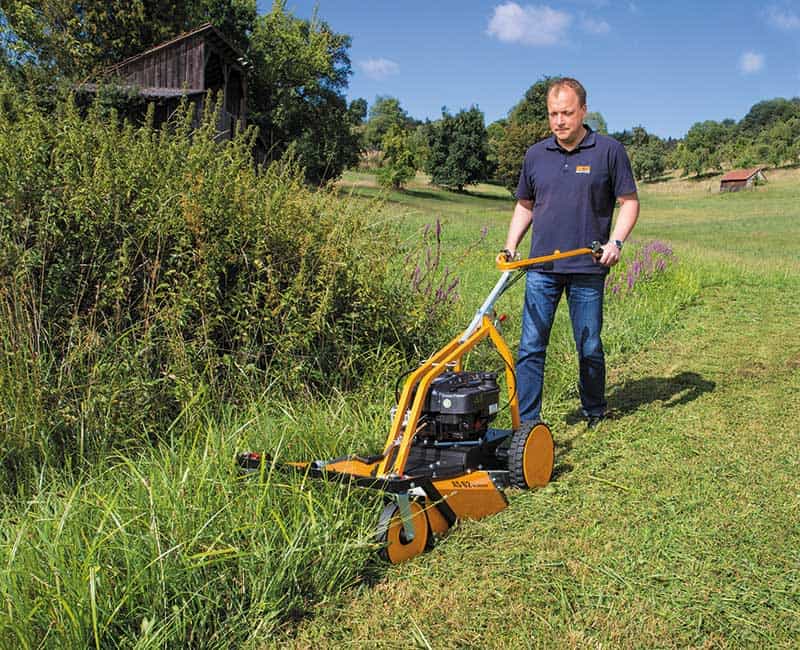

Designed to mow and mulch high grass up to 90 cm high, the AS 62 4T B&S excels on level terrain with many obstacles, such as meadow orchards. Thanks to freewheel units on both sides and movable front wheels the Allmäher is extremely agile. Ideal for private customers as well as service providers and municipalities.

Reliable 4-stroke engine

Equipped with a Briggs & Stratton 850 E-Series I/C engine, the AS 62 4T B&S performs its work reliably. The engine delivers 5.7 hp with a displacement of 190 cm³. The engine shaft and blade shaft are separated by the blade clutch, protecting the engine should the blade collide with rocks or roots. The high cutting force results from a engine rpm to blade gear reduction of 1.6:1.

Cross-blade system and variator drive

Equipped with a cross-blade system the AS 62 4T B&S reliably cuts growth ranging from 50-100 mm high. Cutting height is adjusted for each axle, variable to five levels in the front and rear. The operator can also select a drive speed between 1.9 and 4 km/h. The two freewheel units in wheel drive and the moving front wheels enable comfortable steering, turning and maneuvering around obstacles, even while driving. A conically tapered mowing deck ensures a uniform material flow.

Comfort bar and easy transport

The laterally adjustable V-handlebar comes factory-standard with VibrationProtect, a technology that reduces hand-arm vibration to a minimum. The bar can be easily and conveniently adjusted for height. The AS 62 4T B&S can be “folded together” for easy transport in a passenger vehicle with no need for a trailer.

Product advantages

Mow and mulch in one step

The cross-blade system of this Allmäher easily cuts and shreds high growth with an impressive cutting performance and excellent mulching result.

High cutting capacity

1:1.6 engine-blade reduction for high cutting capacity in dense growth.

Engine protection

Separate engine and blade shaft protects engine.

Conical mower deck

Conical mower deck generates an airflow that uniformly whirls the cuttings in the mulching unit, delivering excellent cutting results.

Λεπτομέρειες προίόντος

product-image

Variator

Ο ρυθμιστής ταχύτητας επιτρέπει τη μεταβλητή ρύθμιση της ταχύτητας κίνησης.

product-image

Αποσβέση κραδασμών

Το "VibrationProtect" μειώνει τους κραδασμούς στα χέρια στο ελάχιστο.

product-image

Εύκολη μεταφορά

Το AS 62 μπορεί να διπλασιαστεί εύκολα για συμπαγείς διαστάσεις μεταφοράς.

product-image

Μεγάλους, ενισχυμένους τροχούς κίνησης

Οι τροχοί κίνησης των 30 cm εξασφαλίζουν την πρόωση. Οι τροχοί ενισχυμένοι με υαλοβάμβακα εγγυώνται την ανθεκτικότητα.

Προδιαγραφές

Πλάτος κοπής 61 cm
Μέγιστο ύψος χόρτων 90 cm
Κατασκευαστής κινητήρα B&S
Μοντέλο κινητήρα 850E I/C
Κυβικά εκατοστά 190 cm³
Μέγιστη ιππόδύναμη 4,1/5,5 kW (hp)
Ιπποδύναμη 3,7/5,1 kW (hp)
Ταχύτητα 3600 στροφές ανά λεπτό
Συμπλέκτης μαχαιριού
Πλαϊνή εναπόθεση / όπισθεν εναπόθεση /
Κλειστού τύπου κοπτικό στοιχείο
Μονή λεπίδα / μαχαίρι τύπου σταυρού / σφυρία τύπου Υ / /
Ύψος κοπής 50 - 100 mm
κίνηση, μηχανική/υδροστατική /
Αριθμός ταχυτήτων Vario
Μέγιστη ταχύτητα 3,8 km/h
Χωρητικότητα δοχείου 1,2 ltr
Διαστάσεις Μ/Π/Υ 191x70x99 cm
Βάρος 67 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Συσκευή αποτροπής εντόμων

Η συσκευή αποτροπής εντόμων της AS-Motor είναι ένα καινοτόμο εξάρτημα κοπής που προστατεύει τους επικονιαστές και την μικρή άγρια ζωή. Επιστημονικά δοκιμασμένη για να αυξήσει τα ποσοστά διαφυγής εντόμων, εξασφαλίζει βιώσιμο κούρεμα ενώ διατηρεί την αποδοτικότητα. Σχεδιασμένο για ανθεκτικότητα, προσαρμοστικότητα και εύκολη ολοκλήρωση με επαγγελματικά μηχανήματα κοπής της AS-Motor.

» read on
product-image

Κιτ ανακύκλωσης χόρτου AS 62, AS 63

Για ακόμη λεπτότερη κοπή και πιο ομοιόμορφα αποτελέσματα κοπής σε γκαζόν με χόρτο μέχρι 40 cm ύψος.

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

Εφαρμογές
