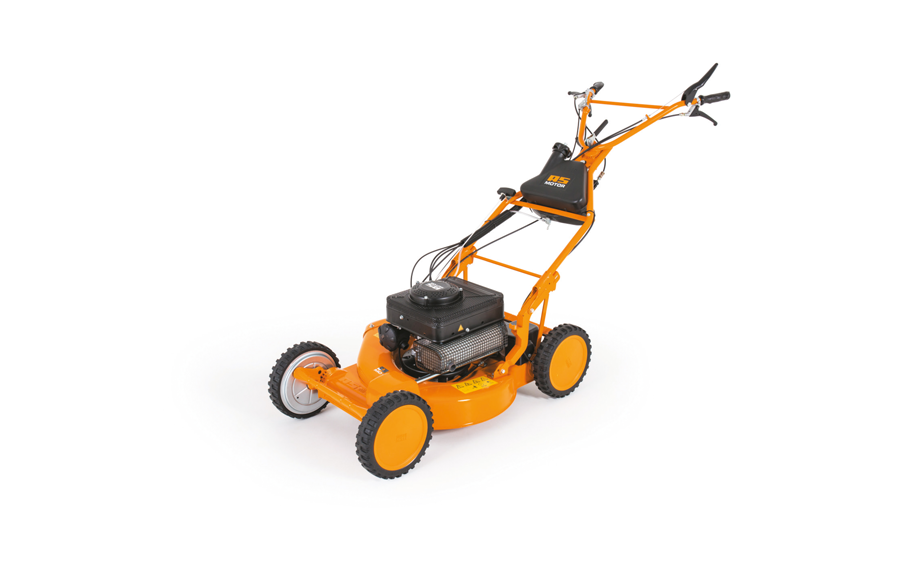

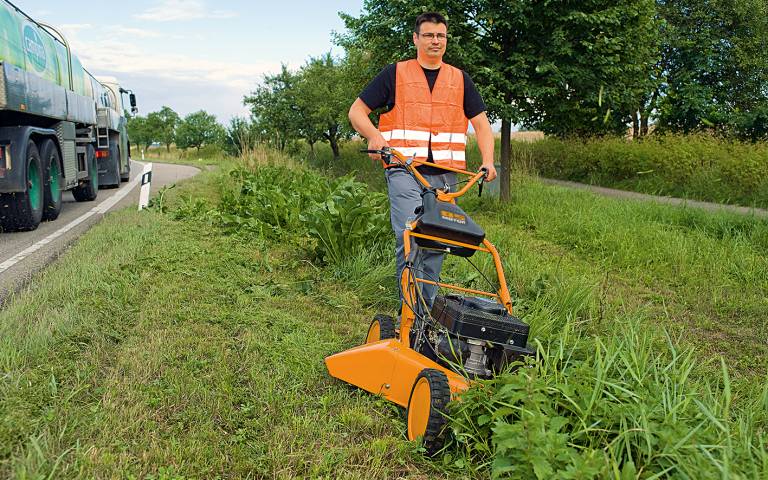

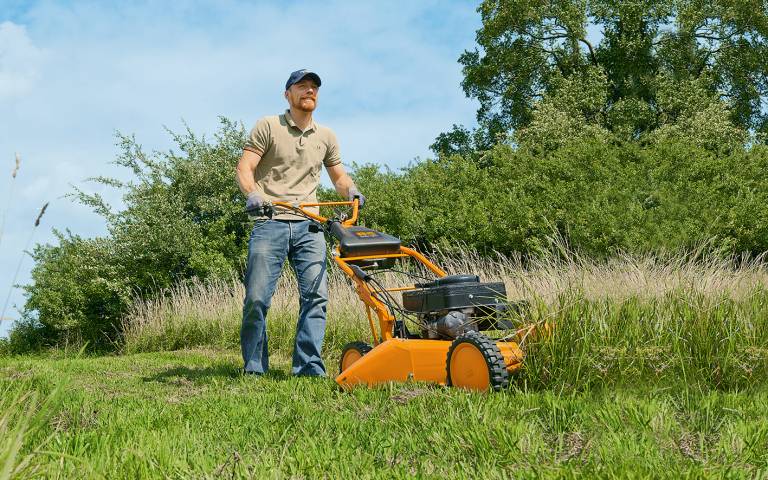

AS 53 2T ES 4WD RB

Categories

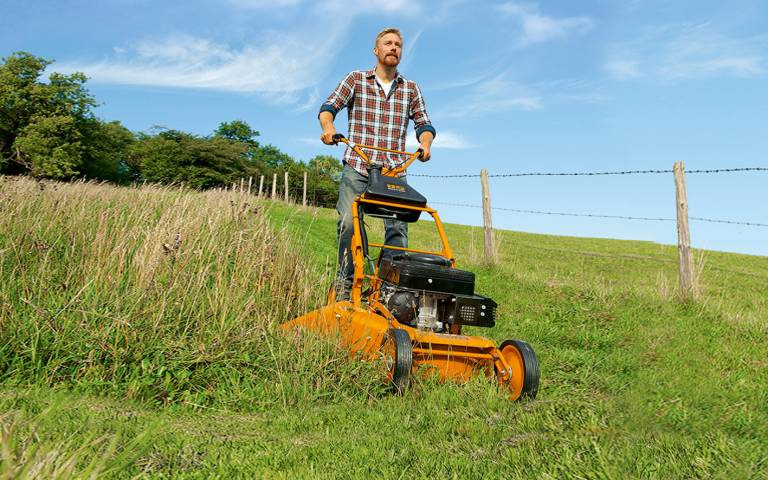

All-wheel drive and reverse gear for steep slopes

Equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC, the AS 53 2T ES 4WD RB can mow safely on inclines. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque provides full power in high, wet grass, while a third crankshaft bearing, safety blade carrier and friction discs on the wing blade protect the engine in the event of unseen obstacles.
All-wheel drive delivers propulsion even in extreme conditions such as slopes and uneven, hilly terrain.
The AS 53 2T ES 4WD RB has excellent grip thanks to large, aggressive tread drive wheels. The brake provides support on extreme slopes and can also be used as a parking brake.
Drive speed can be conveniently adjusted to suit the conditions using the variator, and the AS 53 2T ES 4WD RB comes with a reverse gear. Cutting heights can be adjusted from 30–100 mm via six levels on each axle. Work rates reaching 2,500 m² per hour are possible due to a powerful 2-stroke engine with up to 6.0 hp and a 53 cm cutting width. The AS 53 2T ES 4WD RB easily cuts grass up to 40 cm high.

Product advantages

Engine suitable for slopes

The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.

Mobile through all-wheel drive (AS 53)

With all-wheel drive, rear-wheel brake and reverse gear ideal for ditches, hills, embankments or slopes. In addition, the all-wheel drive ensures a constant downhill speed and increased safety on steep slopes.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the blade ensure optimal engine protection.

Variator with reverse gear

The variable speed adjustment allows optimal performance in all work conditions. In addition the device is equipped with a reverse gear.

Λεπτομέρειες προίόντος

product-image

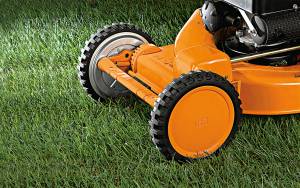

Ρύθμιση ύψους κοπής

6-πλή ρύθμιση ύψους ανά άξονα.

product-image

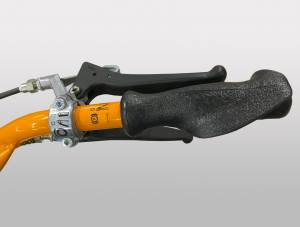

Φρένο πίσω τροχού

Φρένο στάθμευσης και ασφαλείας για ασφαλή εργασία σε όλες τις καταστάσεις.

product-image

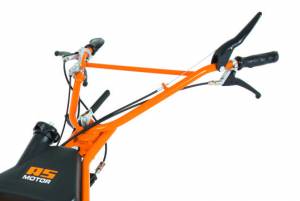

Μπαρά οδηγήσεως

Αναδιπλούμενη και πλευρικά ρυθμιζόμενη μπαρά οδηγήσεως.

product-image

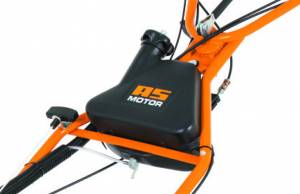

Δοχείο 5 λίτρων

Δοχείο υψηλής χωρητικότητας 5 λίτρων για μεγάλα διαστήματα εργασίας πριν από την ανεφοδιασμό.

Προδιαγραφές

Πλάτος κοπής 53 cm
Μέγιστο ύψος χόρτων 40 cm
Κατασκευαστής κινητήρα AS-Motor
Μοντέλο κινητήρα AS 165 ES
Κινητήρας, 4χρονος / 2χρονος /
Μέγιστη ιππόδύναμη 4,4/6,0 kW (hp)
Ιπποδύναμη 2,8/3,8 kW (hp)
Ταχύτητα 2800 στροφές ανά λεπτό
Χωρητικότητα δοχείου 5 ltr
Οπισθοκίνηση/ AWD /
Αριθμός ταχυτήτων Vario
Ταχύτητα όπισθεν
Μέγιστη ταχύτητα 4,8 km/h
Φρένο
Ανακύκλωση χόρτου, Εργοστασιακή / Προαιρετική /
Ύψος κοπής 30 - 100 mm
Ρύθμιση ύψους κοπής, κεντρική/ανά άξονα/ανά τροχό / /
Ρύθμιση ύψους κοπής, αριθμός θέσεων 6
Διαστάσεις Μ/Π/Υ 178x82x99 cm
Βάρος 68 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

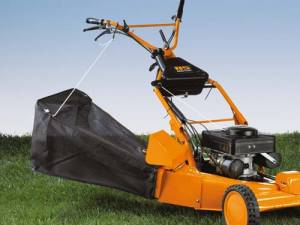

Κάδος πλευρικής συλλογής χόρτου

Για τη συλλογή των κομμένων φυτών.

product-image

Διπλοί τροχοί

Προαιρετικοί διπλοί τροχοί για βελτιωμένη πρόσφυση σε κλίσεις.

product-image

Χειρολαβές με προστασία χεριών από πλαστικό

Αποτελεσματική προστασία από βάτα και αγκάθια.

product-image

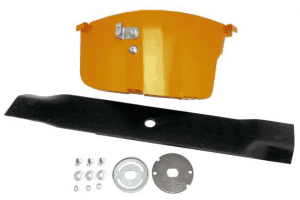

Κιτ ανακύκλωσης χόρτου AS 53

Το κλείσιμο της πλευρικής εκφόρτωσης εξασφαλίζει τέλεια αποτελέσματα κοπής.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Δίχρονο Λάδι της AS "Titan 2T"

Λάδι δύο χρόνων υψηλής απόδοσης, για μια βέλτιστη οικολογική αναλογία μίξης. Συνιστάται για όλους τους κινητήρες δύο χρόνων της AS. Έχει δοκιμαστεί και εγκριθεί για την συνιστώμενη αναλογία μίξης 1:100. Είναι επίσης κατάλληλο για αναλογία μίξης 1:50. Αντικαθιστά το προηγούμενο λάδι μας TITAN 2T 100S, το οποίο δεν είναι πλέον διαθέσιμο.
