Χορτοκοπτική μηχανή AS 510 ProClip 4T A

Categories

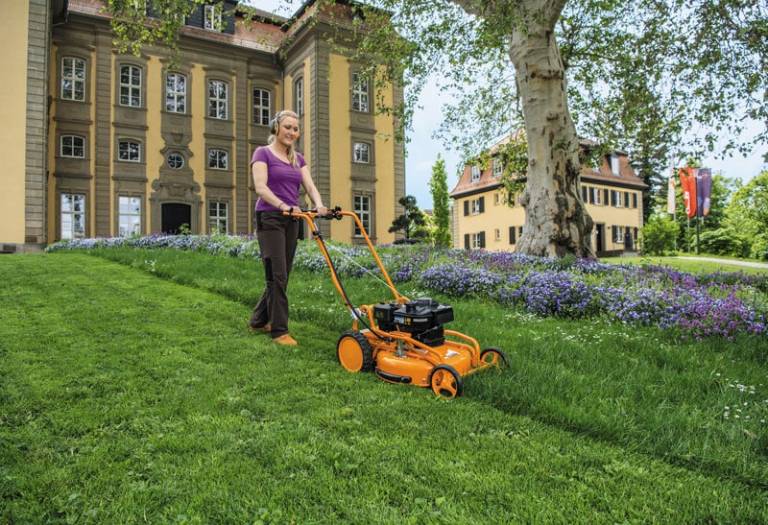

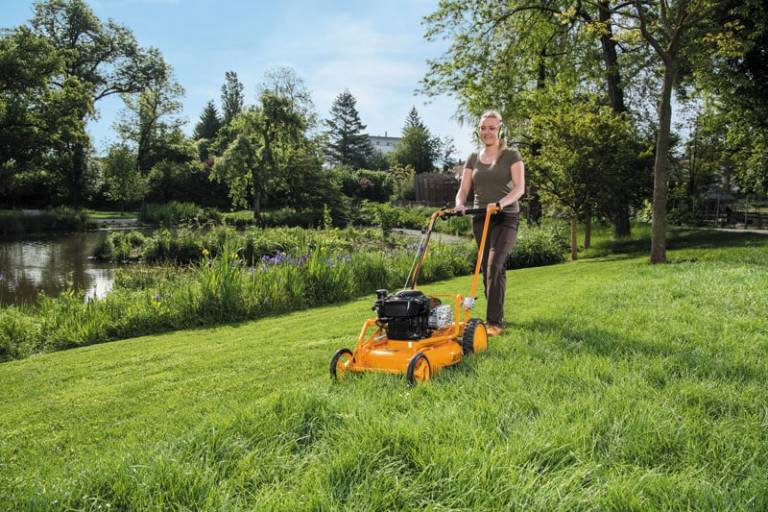

Mulching mower for professional users

The AS 510 ProClip 4T A offers work rates reaching 2,100 m² per hour due to a high-performance Briggs & Stratton engine and a 51 cm cutting width. The Briggs & Stratton engine not only delivers up to 5.7 hp, its asymmetric arrangement also ensures excellent handling thanks to a balanced distribution of weight. A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles while a variator allows the convenient adjustment of speed from 2.1–4.0 km/h while in motion. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. Cutting height can be adjusted to 6 levels from 40–90 mm via a spring-supported system. Large, aggressive tread wheels ensure optimal traction and propulsion.

Mulching fertilises the lawn

The AS 510 ProClip 4T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag as well as the time and cost-intensive process of disposing of the cuttings. The mulching blade cleanly cuts grass up to 20 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s multiple cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out.

Product advantages

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)

Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Stable double frame

Stable tube frame with replaceable mulching unit.

Λεπτομέρειες προίόντος

product-image

Σταθερή μονάδα mulching

Κλειστή μονάδα mulching για ομοιόμορφα αποτελέσματα.

product-image

Τέλεια ισορροπία

Ένας περιστραμμένος κινητήρας επιτρέπει ομοιόμορφη κατανομή βάρους για καλύτερο χειρισμό.

product-image

Ρύθμιση ύψους κοπής

Κεντρική ρύθμιση ύψους με υποστήριξη ελατηρίου.

product-image

Ειδικοί μπροστινοί τροχοί

Τροχοί με διπλά έδρανα, που τρέχουν ομαλά, πιέζουν πολύ λίγο το χόρτο.

Προδιαγραφές

Πλάτος κοπής 51 cm
Μέγιστο ύψος χόρτων για "mulching" 20 cm
Κατασκευαστής κινητήρα B&S
Μοντέλο κινητήρα 850 PXi Readystart
Μονοκύλινδρος κινητήρας 4χρονος/2χρονος /
Μέγιστη ιππόδύναμη 4,2/5,7 kW (hp)
Ιπποδύναμη 3,2/4,3 kW (hp)
Ταχύτητα 2800 στροφές ανά λεπτό
Τρίτο ρουλεμάν στροφαλοφόρου για προστασία κινητήρα
100% λειτουργία mulching
Ύψος κοπής 40 - 90 mm
Κεντρική ρύθμιση ύψους κοπής
Ρύθμιση ύψους κοπής, αριθμός θέσεων 6
Πίσω κίνηση
Αριθμός ταχυτήτων Vario
Μέγιστη ταχύτητα 4 km/h
Ρυθμιση χειριστιρίου: Ύψος
Χωρητικότητα δοχείου 1,2 ltr
Διαστάσεις Μ/Π/Υ 139x55x100 cm
Βάρος 43 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Δοχείο καυσίμου 5 λίτρων

Δοχείο υψηλής χωρητικότητας 5 λίτρων για μεγάλα διαστήματα εργασίας χωρίς ανάγκη ανεφοδιασμού.

product-image

Μπροστινός και πλευρικός προφυλακτήρας

Για την προστασία των μπροστινών τροχών.
