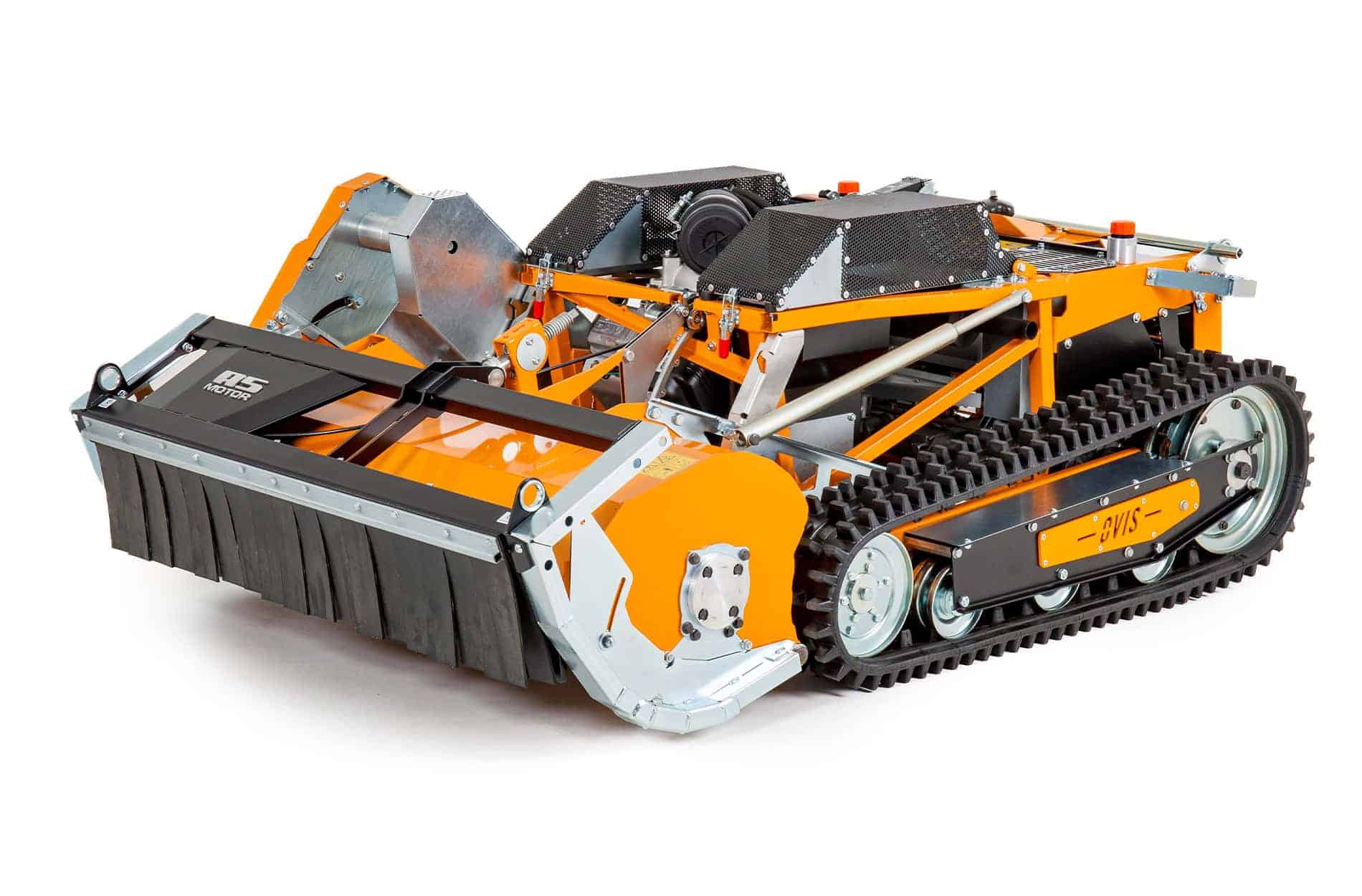

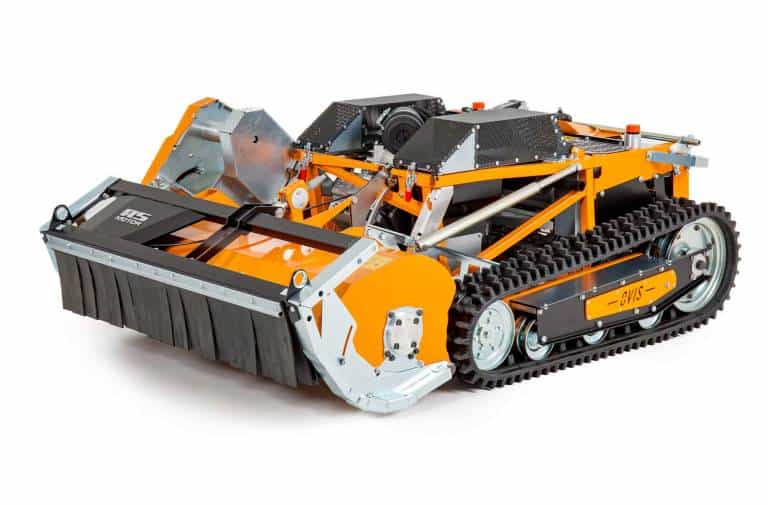

Τηλεχειριζόμενος καταστροφέας με σφυριά AS 1000 Ovis RC

Categories

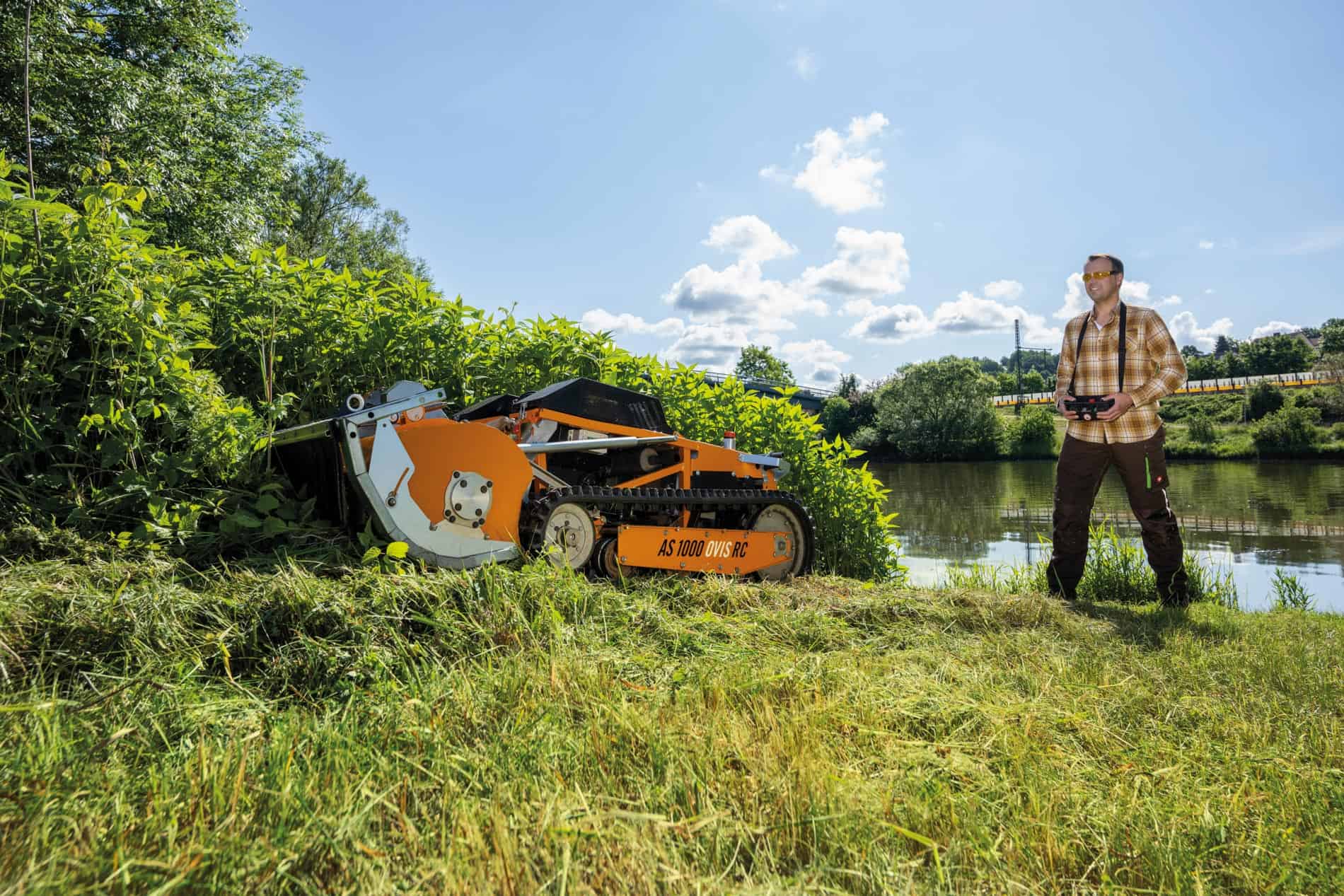

The remote-controlled flail mower – from pros, for pros

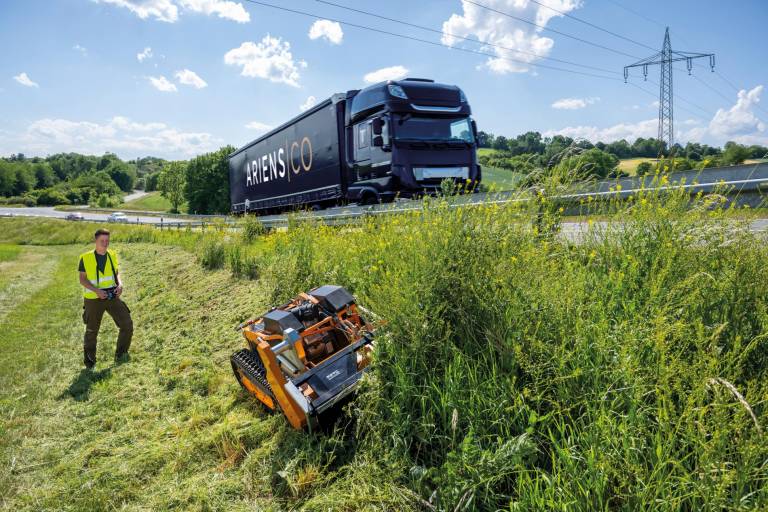

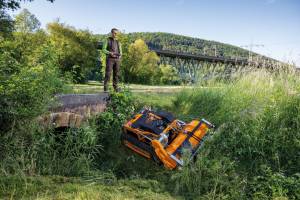

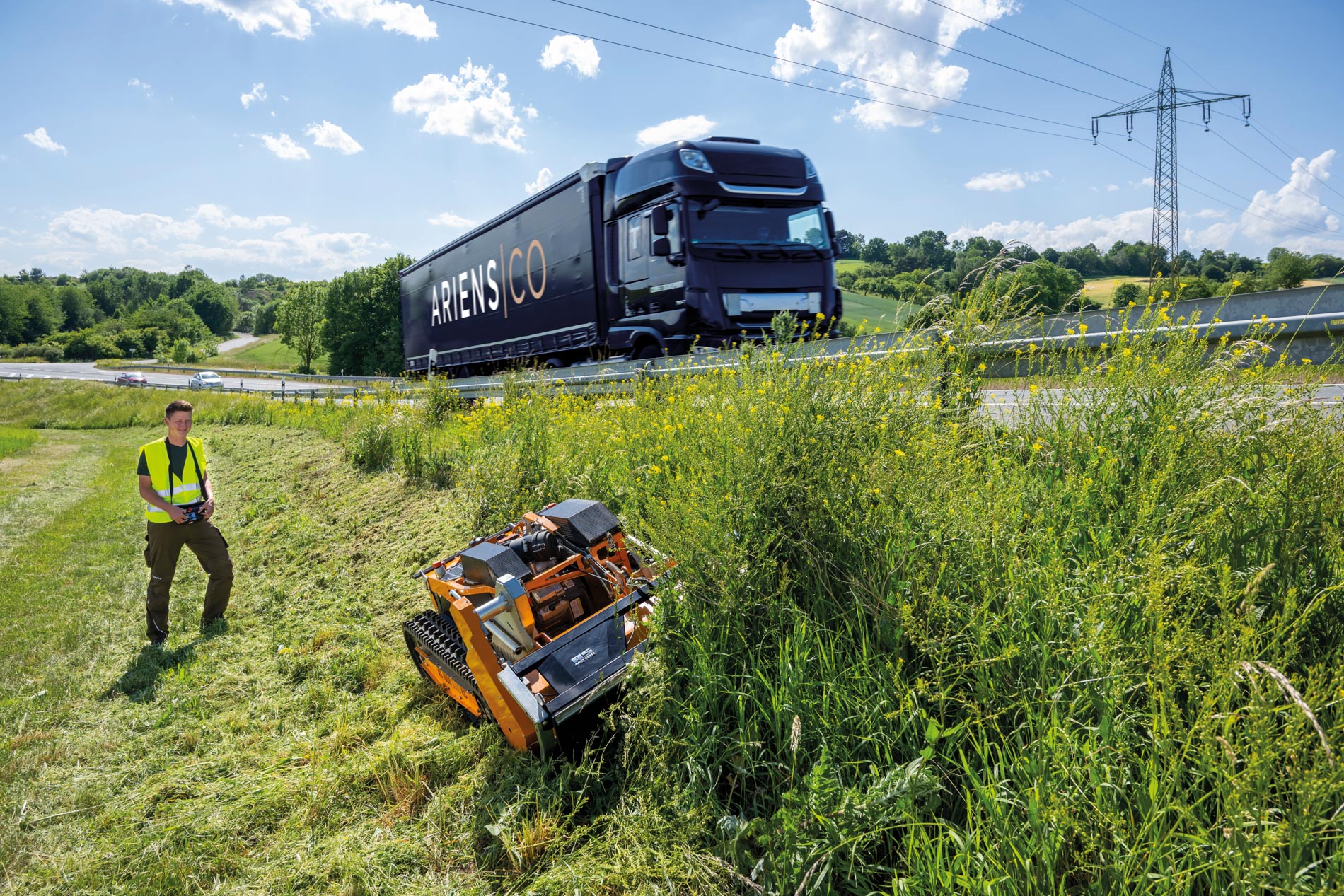

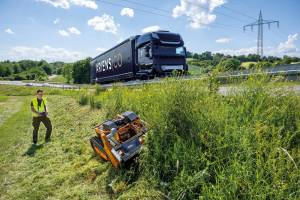

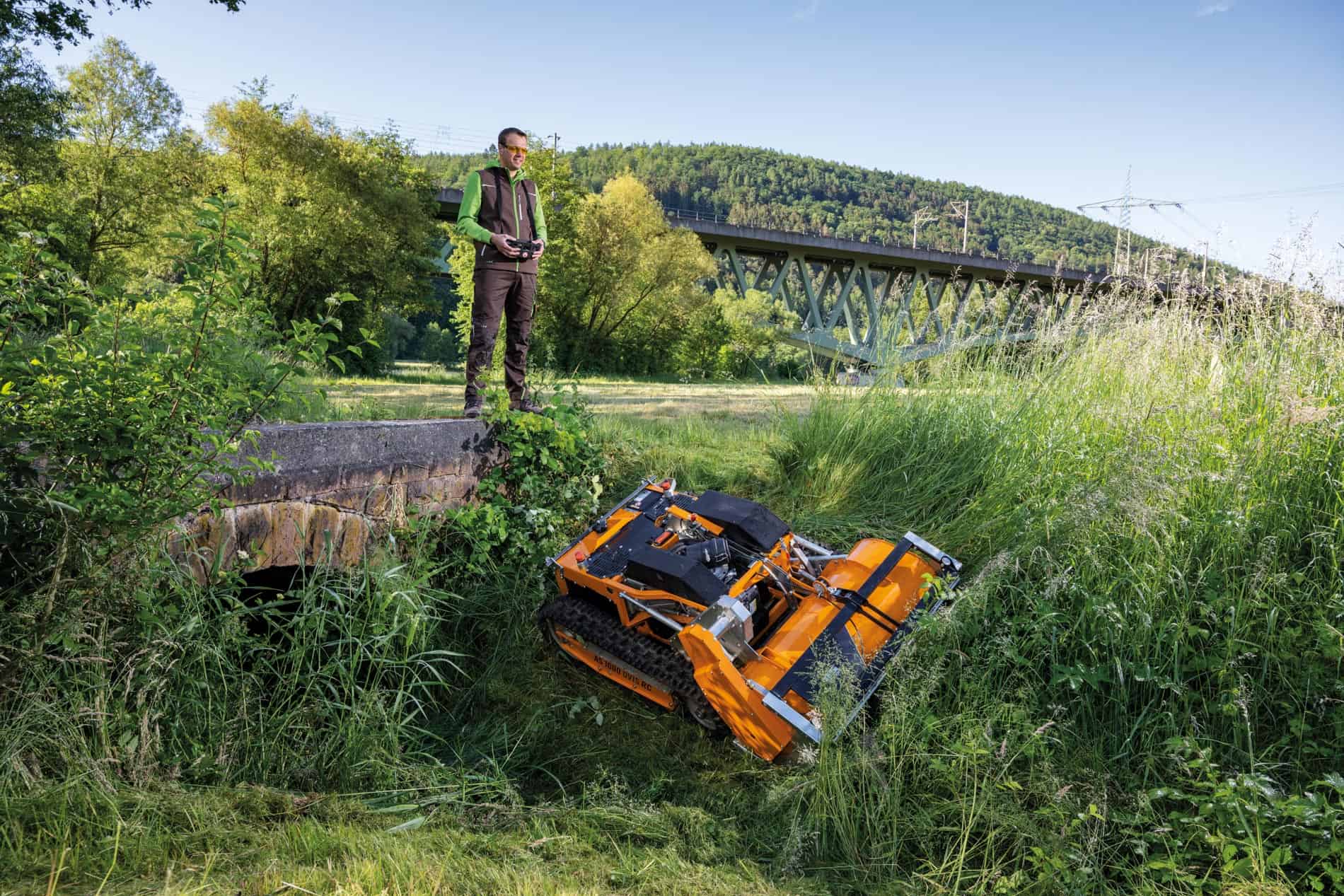

Noise barriers, railway embankments, rainwater retention basins, solar parks or wind farms often pose great challenges for landscape managers and service providers: the difficult to access, impassable and steep areas have to be maintained regularly. With its simply designed remote control and its enormous mowing performance, the AS 1000 Ovis RC is up to the task. With the RC flail mower, you work comfortably and intuitively from a safe distance. Thanks to the low overall height (69 cm) and the deep-seated Vanguard Professional engine with optimised oil supply, the flail mower achieves a perfect centre of gravity – the prerequisite for extreme slope suitability and mowing under deep obstacles. The moderate operating weight of 419 kg ensures maximum soil protection. The balanced weight distribution and the robust undercarriage enable safe mowing of steep slopes up to 55 degrees.

To view this video, please accept cookies from external media
Youtube Video Thumbnail

Enormous mowing performance and individually adjustable to every requirement

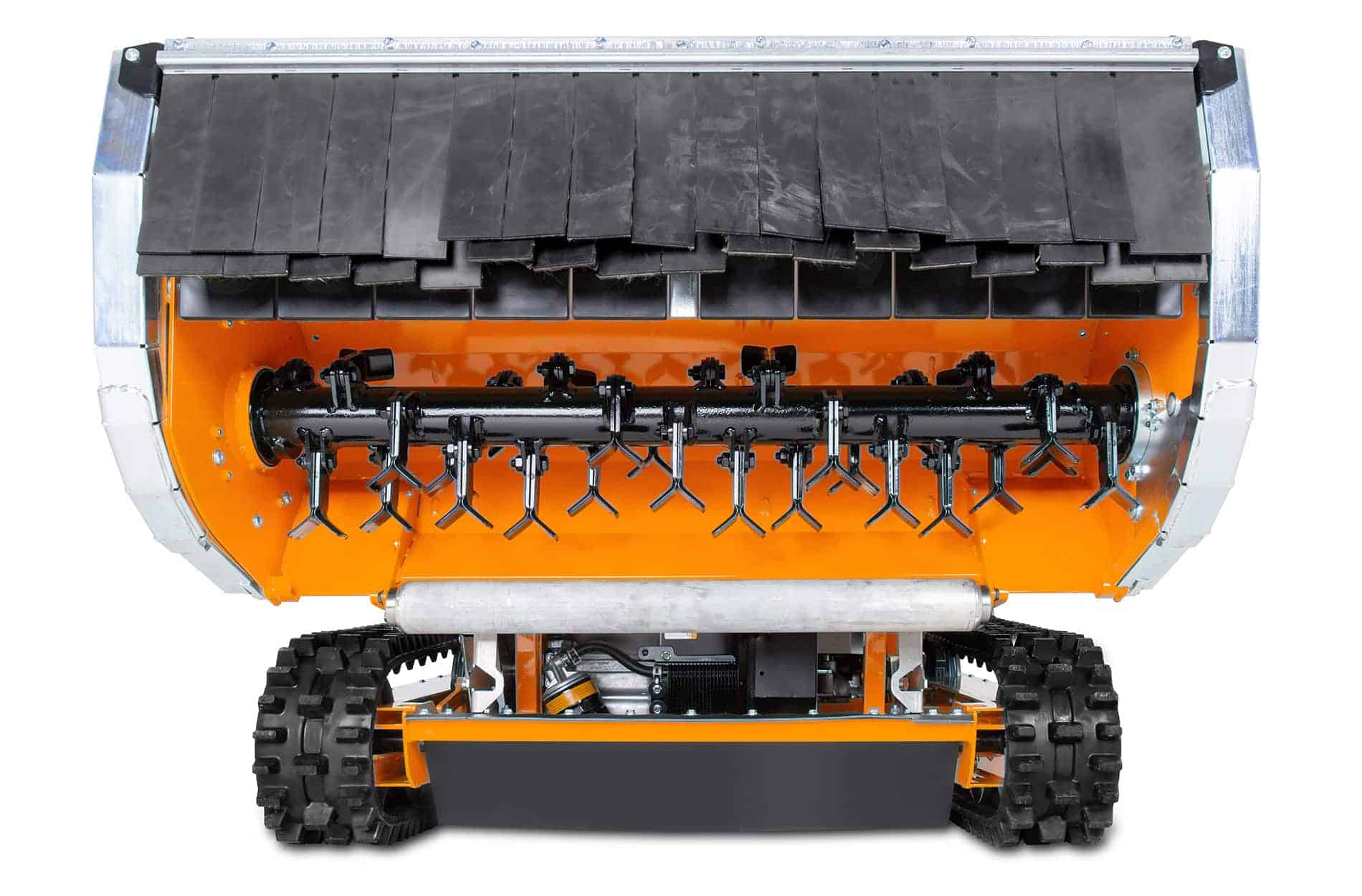

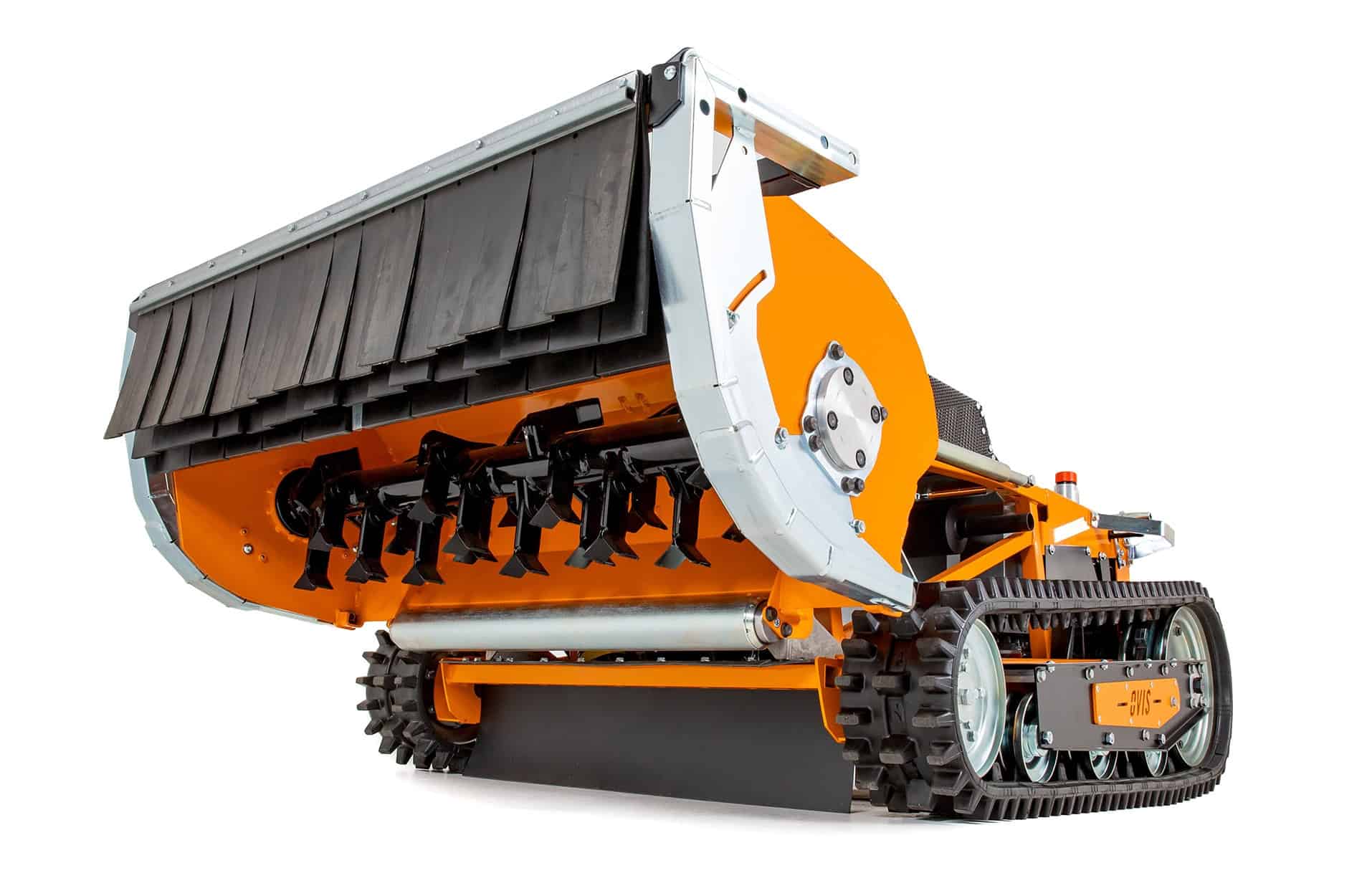

The AS 1000 Ovis RC offers a wide range of adjustment possibilities with its surfing mowing deck. Thanks to the large up and downward swing, the robust flail mower adapts perfectly to uneven ground and prevents damage to the turf. Optimal control via roller (including anti-scalp function), adjustable sliding frame or carried insert without contact to the ground for maximum traction in difficult terrain – choose your personal setting for perfect adaption to all terrain conditions. The 100 cm wide flail mowing deck with stepless cutting height adjustment and the somewhat narrower undercarriage also enable comfortable mowing close to the edge, down to a few centimetres along crash barriers or other obstacles.

Optimum power transmission

The enormous power of the horizontal Vanguard Professional V-engine is optimally utilised. It is directly and efficiently transmitted to the mower deck via a belt drive. The proven Vanguard engine with 23 hp maximum power impresses with a 3-year warranty as well as its stable and robust construction. The components from the Yak series – e.g., the robust flail mower deck and the belt pressure spring tensioner – are used in the new AS 1000 Ovis RC.

Simplest handling and maintenance

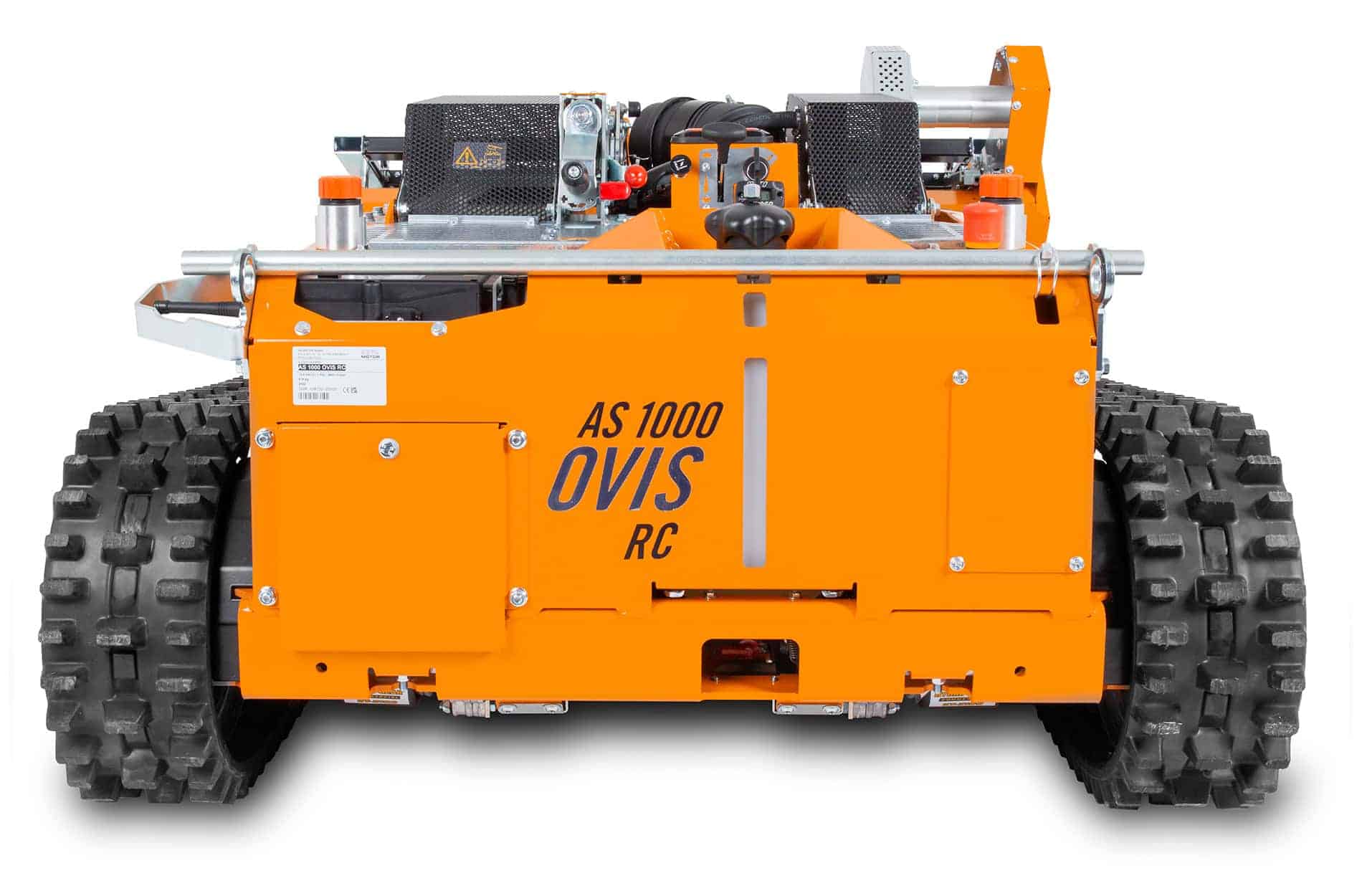

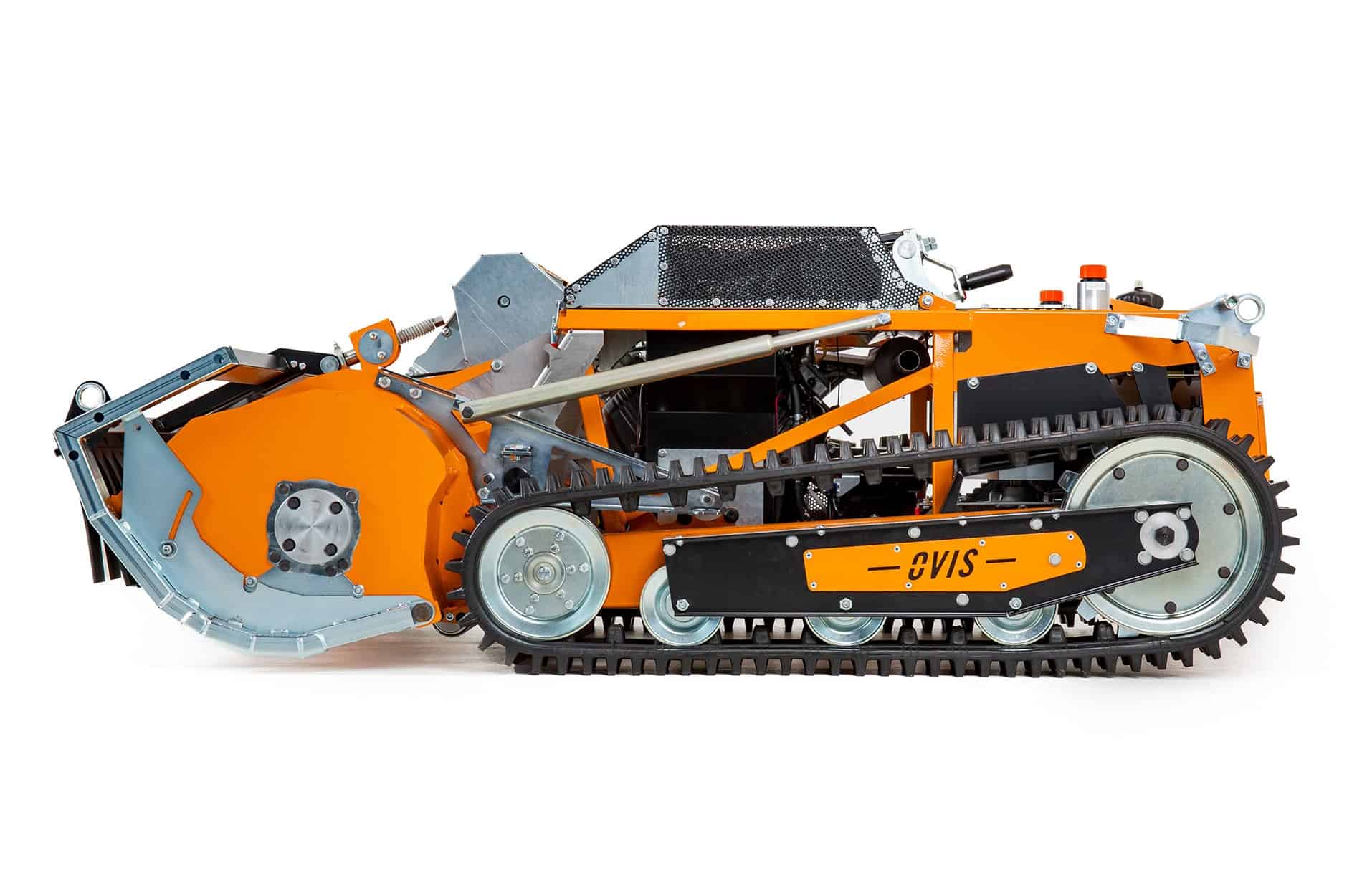

Stable caterpillar tracks with steel inserts provide maximum traction on steep slopes. The assembly of the belts is quickly done thanks to the integrated quick tensioning system and defined adjustment for exact track tension. An automatic, mechanical parking brake brings additional safety when working on slopes. With its compact dimensions of 184 cm / 115 cm / 69 cm (only 159 cm long with the mower deck raised), the remote-controlled flail mower can be transported easily and quickly.

Maintenance-free shaft bearings, robust hydraulic motors from large-scale production and a large-volume fuel tank are the basis for long working days in difficult terrain and high grass. For daily cleaning tasks, the AS 1000 Ovis RC offers excellent accessibility. Air ducts, filters and oil control are accessible without any tools and the mower deck can be easily placed in a service position. Important components can be quickly reached through foldable service covers. The AS 1000 Ovis RC also requires very little maintenance: maintenance interval of 400 operating hours and first service after 50 h.

Product advantages

Versatile mower setting

One mowing deck – countless possibilities: optimal control via roller with anti-scalp function, adjustable sliding frame or carried insert for perfect adaption to different terrain conditions.

Mowing close to the edge

The 100 cm wide flail mower and the slightly narrower caterpillar track enable comfortable mowing close to the edge and within a few centimetres of obstacles.

Optimal power transmission

The enormous power of the Vanguard Professional 2-cylinder engine is transmitted directly and with low loss via two belts to the blade shaft. The torque is divided between two robust belts.

Extreme mowing performance

The AS 1000 Ovis RC has all the well-known advantages of the proven flail mower: maximum mowing speed, excellent cutting pattern and even grass placement.

Compact design

The low operating weight (only 419 kg) and compact dimensions (184 cm / 115 cm / 69 cm) allow mowing under low obstacles and on steep slopes.

Extreme suitability for slopes

Low-seated horizontal Vanguard Professional engine and lowest overall height of only 69 cm – the prerequisites for the low centre of gravity position and extreme slope suitability.

Intuitive operation

Clear operating elements and accurate controls are the basis for precise manoeuvring of the machine. Robust hydraulic motors with their enormous torque ensure a precise and powerful drive.

Simple maintenance

The flail mower only needs to be serviced every 400 operating hours (first service after 50 hours). Excellent accessibility for daily cleaning and service work. Easy maintenance position for the flail mower.

Λεπτομέρειες προίόντος

product-image

Γρήγορη απελευθέρωση αλυσίδας

Οι γρήγοροι τανυστές των αλυσίδων μετάδοσης μπορούν να σφίξουν και να χαλαρώσουν χρησιμοποιώντας την επέκταση που παρέχεται ως πρότυπο και ένα επιπλέον κλειδί. Αυτό γίνεται από το πίσω μέρος της μηχανής. Οι τανυστές αλυσίδας είναι εύκολα προσβάσιμοι. Το ελατήριο πρέπει να προ-τανυστεί σε μήκος περίπου 12,5 cm.

product-image

Άξονας ψυκτικού αέρα

Το καπάκι με τρύπες που ανοίγει λειτουργεί ως προφίλτρο για τον αέρα ψύξης του κινητήρα. Μπορεί να ανοίξει σε δευτερόλεπτα για να καθαριστεί ο άξονας εισαγωγής. Αυτό είναι ιδιαίτερα απαραίτητο υπό ξηρές και σκονισμένες συνθήκες εργασίας.

product-image

Απλό καλώδιο

Ο AS 1000 Ovis RC σχεδιάστηκε από την αρχή με απλότητα στα ηλεκτρικά. Το καλώδιο έχει μειωθεί στο ελάχιστο, επιτρέποντας σε οποιονδήποτε εξειδικευμένο αντιπρόσωπο να εκτελεί γρήγορα και εύκολα εντοπισμό σφαλμάτων και επισκευές. Πολύπλοκα ηλεκτρονικά συστήματα έχουν παραλειφθεί εκ προθέσεως.

product-image

Υδροκινητήρες τροχών

Οι δύο υδροστάτες του AS 1000 Ovis RC έχουν σχεδιαστεί για επαγγελματική χρήση. Με διάστημα συντήρησης 400 ωρών (πρώτη αλλαγή λαδιού μετά από 50 ώρες), μειώνουν σημαντικά τις απαιτήσεις συντήρησης. Η μέγιστη ροπή των υδροκινητήρων τροχών είναι 474 Newton-meters.

Προδιαγραφές

Πλάτος κοπής 100 cm
Μέγιστο ύψος χόρτων 150 cm
Κατασκευαστής κινητήρα Vanguard
Μοντέλο κινητήρα V-Twin 3864
4χρονος κινητήρας, Μονοκύλινδρος /Δικύλινδρος /
Κυβικά εκατοστά 627 cm³
Μέγιστη ιππόδύναμη 17,2/23,0 kW (hp)
Ιπποδύναμη 15,5/21,1 kW (hp)
Ταχύτητα 3600 στροφές ανά λεπτό
Εκκίνηση, Κορδόνι/Μίζα /
Hydrostatischer Antrieb auf Raupenlaufwerk
Αριθμός ταχυτήτων stufenlos
Ταχύτητα όπισθεν
Μέγιστη ταχύτητα 5 km/h
Αυτόματο χειρόφρενο
Συμπλέκτης μαχαιριού, Ηλεκτρικός / Μηχανικός /
Κλειστού τύπου κοπτικό στοιχείο
Ζευγάρι σφυριών 56
Σχήμα σφυριών, Τύπου Y / Σφυριά /
Ύψος κοπής 40 - 110 mm
και οι δύο πλευρές των σφυριών μπορούν να χρησιμοποιηθούν
Χωρητικότητα δοχείου 12 ltr
Διαστάσεις Μ/Π/Υ 184x115x69 cm
Βάρος 419 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Συσκευή αποτροπής εντόμων

Η συσκευή αποτροπής εντόμων της AS-Motor είναι ένα καινοτόμο εξάρτημα κοπής που προστατεύει τους επικονιαστές και την μικρή άγρια ζωή. Επιστημονικά δοκιμασμένη για να αυξήσει τα ποσοστά διαφυγής εντόμων, εξασφαλίζει βιώσιμο κούρεμα ενώ διατηρεί την αποδοτικότητα. Σχεδιασμένο για ανθεκτικότητα, προσαρμοστικότητα και εύκολη ολοκλήρωση με επαγγελματικά μηχανήματα κοπής της AS-Motor.

» read on
product-image

Σετ σφυριών

Πλήρες σετ. Για AS 1040 YAK και AS 1000 Ovis.
