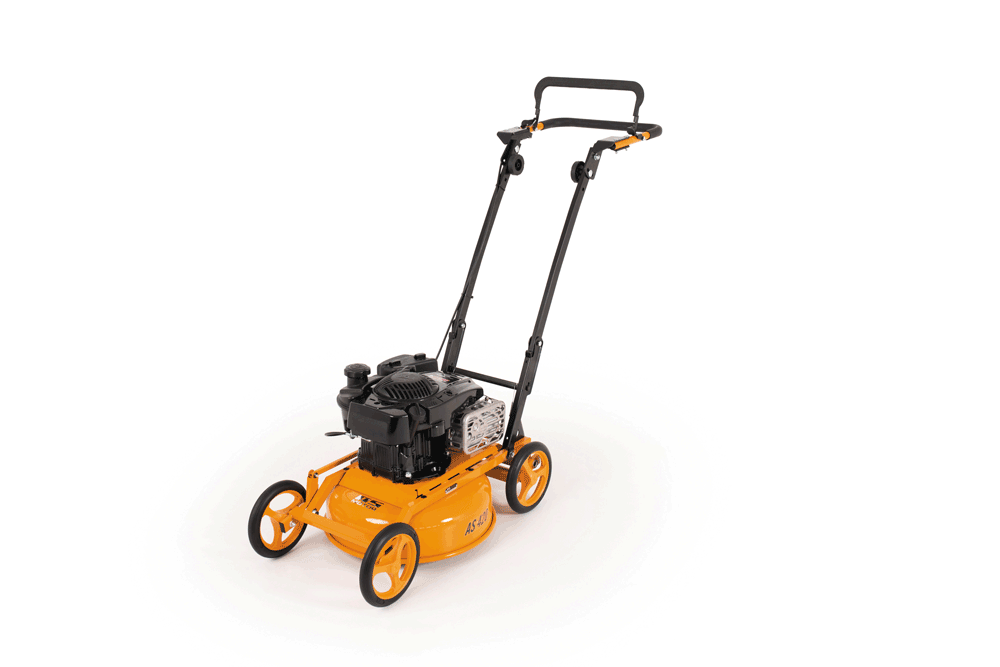

AS 420 ProClip 4T

Categories

Compact clear-out mower for mulching in confined spaces

Compact and agile. At 30 kg with a 42 cm cutting width, the AS 420 ProClip 4T mulching mower is perfectly suited for clean-out tasks in confined and angled spaces. The Briggs & Stratton engine not only delivers up to 5.7 hp, its asymmetric arrangement also ensures excellent handling thanks to a balanced distribution of weight.
A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles. A galvanised steel mulching unit with reinforced edges guarantees a long service life, robustness and operator safety, even in difficult conditions.
Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. This makes the cutting pattern extremely uniform. Cutting height can be adjusted centrally in a range from 40–80 mm via a spring-supported system, by foot or by hand.

Save time and money by mulching

A deep mulching unit delivers even finer cutting results. The mulching blade cleanly cuts grass up to 18 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s multiple cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out. The AS 420 ProClip 4T saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag or dispose of the cuttings.

Product advantages

Lightweight and agile

Outstanding handling due to 30 kg total weight and a rotated engine.

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Robust construction

Galvanised steel mulching unit with reinforced edge. Stable, height-adjustable guide bar.

Λεπτομέρειες προίόντος

product-image

Σταθερή μονάδα κοπριάς

Κλειστή και βαθιά μονάδα κοπριάς για ομοιόμορφα αποτελέσματα.

product-image

Ρύθμιση ύψους κοπής

Κεντρική ρύθμιση ύψους με ελατήριο.

product-image

Ειδικοί τροχοί

Τροχοί με διπλή υποστήριξη ρουλεμάν, που πιέζουν πολύ λίγο το γκαζόν.

product-image

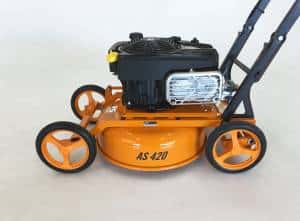

Τέλεια ισορροπία

Ένας περιστραμμένος κινητήρας επιτυγχάνει ομοιόμορφη κατανομή βάρους για καλύτερο χειρισμό.

Προδιαγραφές

Πλάτος κοπής 42 cm
Μέγιστο ύψος χόρτων για "mulching" 18 cm
Κατασκευαστής κινητήρα B&S
Μοντέλο κινητήρα 850 PXi Readystart
Μονοκύλινδρος κινητήρας 4χρονος/2χρονος /
Μέγιστη ιππόδύναμη 4,2/5,7 kW (hp)
Ιπποδύναμη 3,2/4,3 kW (hp)
Ταχύτητα 2800 στροφές ανά λεπτό
Τρίτο ρουλεμάν στροφαλοφόρου για προστασία κινητήρα
100% λειτουργία mulching
Ύψος κοπής 40 - 80 mm
Κεντρική ρύθμιση ύψους κοπής
Ρύθμιση ύψους κοπής, αριθμός θέσεων 5
Ρυθμιση χειριστιρίου: Ύψος
Χωρητικότητα δοχείου 1,2 ltr
Διαστάσεις Μ/Π/Υ 127x46x100 cm
Βάρος 30 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.
