AS 585 EKM

4,1/5,5 kW (hp)

Categories

The battery-powered disc mower - emission-free and easy to handle

The AS 585 KM turns forage production for animals into an efficient and convenient task by embracing the principle of drum mowing: four flexible, swinging knife blades are fastened to the lower end of a drum and press outward when it rotates, cutting high grass up to 60 cm high a few centimeters above the ground. The long grass is then deposited in swaths for easy collection. A four-stroke OHV engine XP 200 with 196 ccm displacement and up to 4.8 hp combined with a 62 cm cutting width delivers work rates reaching 1,500 m² per hour.

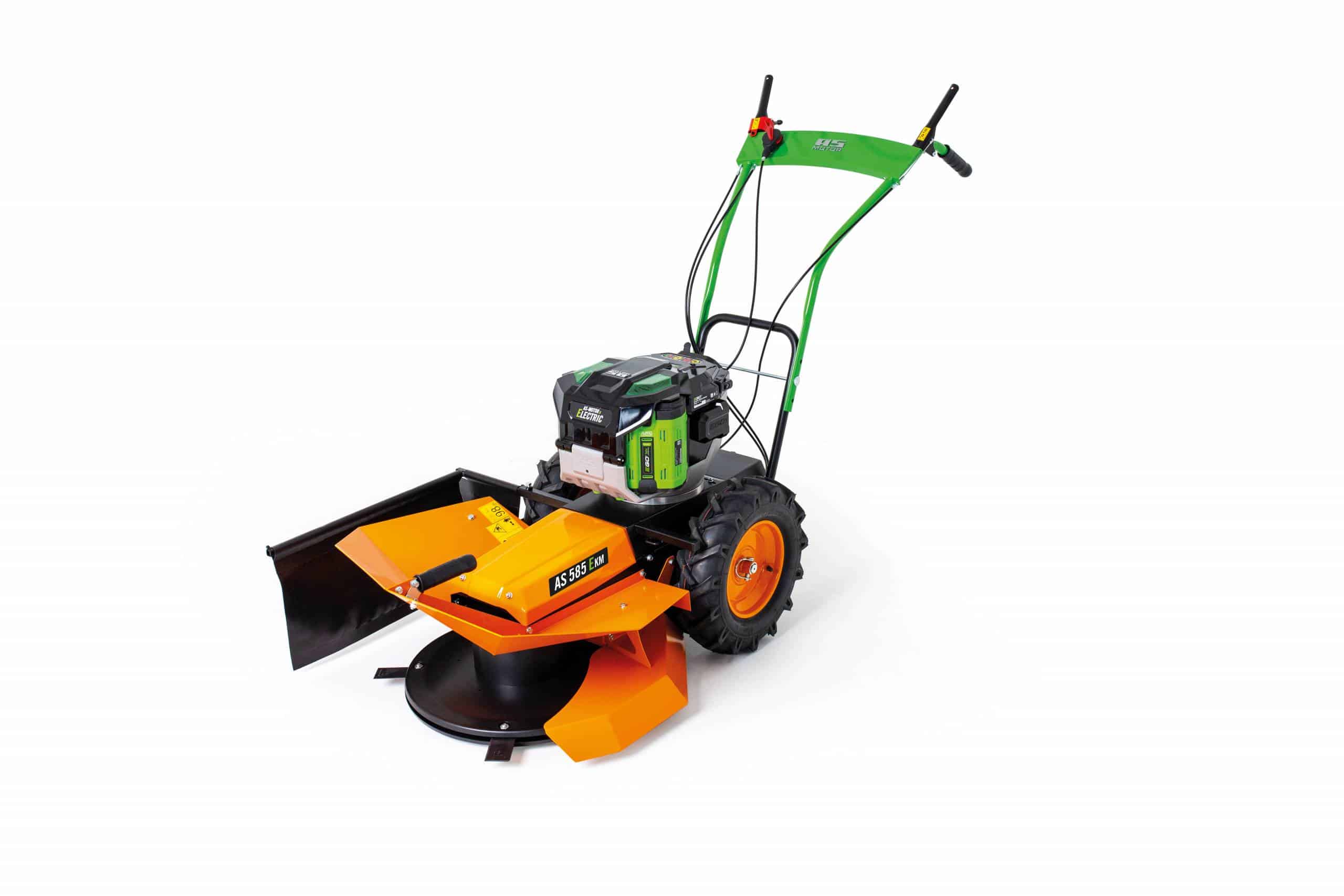

Emission-free fodder and hay production with the new AS 585 E-KM rotary mower

The 56 volt AS-Motor Electric drive has the power of a conventional 200 cm³ 4-stroke combustion engine. Two professional portable 56 V batteries with 12 Ah each supply it with energy. That is an enormous 1,344 Wh of energy content. The drive unit can cope with power peaks without switching off. The intelligent “Power-Peak” system balances the connected batteries in parallel. The externaly mounted batteries in the patented ARC-shape are excellently protected against overheating. Important when mowing hay in the hot summer

The drive function is operated via a lever with a forward speed of 2.4 km/h. The rear wheels’ differential can be locked manually to increase propulsion in difficult terrain, while the guide bar can be adjusted to the operator’s height for comfortable work, or unhinged for simple transport. This means that the AS 585 E-KM rotary mower can also be transported in a slightly larger car.

An outstanding price-performance ratio and low-maintenance operation make the AS 585 E-KM a convenient and efficient tool for forage production.



Product advantages

Low-noise, low-emissions work

Thanks to battery power the device can be used in areas that are sensitive to noise and emissions.

Professional battery drive

56 Volt system with two times 12 Ah Li-Ion batteries. 3.460 watts maximum power and 1.344 watt-hours energy capacity.

Efficient forage production

The cut grass is deposited in swaths, enabling fast and easy collection.

Comfortable handling

Vibration-free operation makes the work much more pleasant when compared with bar mowers.

High profitability

Outstanding price-performance ratio and extremely low-maintenance.

Lightweight and compact

Easy handling during the operation and compact transport dimensions.

Λεπτομέρειες προίόντος

product-image

Ηλεκτρική κίνηση AS-Motor

Η πιο ισχυρή ηλεκτρική κίνηση στην αγορά. 56 βολτ, 3.460 βατ μέγιστη ισχύς. Δύο υποδοχές μπαταρίας, ενεργή ψύξη και δύο ταχύτητες λειτουργίας.

product-image

Μονάδα κοπής

Σταθερή πλάκα κοπής με σκληρυμένα αναστρέψιμα διπλής όψης λεπίδες, ακονισμένα και στις δύο πλευρές.

product-image

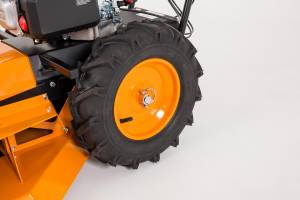

Διαφορικό με κλείδωμα

Πίσω τροχοί με ελαστικά με καρφιά και χειροκίνητο κλείδωμα διαφορικού για εξαιρετική πρόωση.

product-image

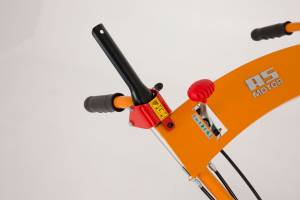

Μπάρα οδήγησης

Η μπάρα οδήγησης μπορεί να ρυθμιστεί στο επιθυμητό ύψος εργασίας.

Προδιαγραφές

Πλάτος κοπής 62 cm
Μέγιστο ύψος χόρτων 60 cm
Κατασκευαστής κινητήρα AS-Motor
Μοντέλο κινητήρα AS-Motor Electric
Συμπλέκτης μαχαιριού
Πλαϊνή εναπόθεση
Ευέλικτες κοπτικές λεπίδες
Ρυθμιζόμενη πλαινή εναπόθεση
Ρύθμιση ύψους κοπής, αριθμός θέσεων 1
Κίνηση τροχών
Αριθμός ταχυτήτων, με ιμάντα 1
Μέγιστη ταχύτητα 2,7 km/h
Κλείδωμα διαφορικού, χειροκίνητο
Ρυθμιση χειριστιρίου: Ύψος
Εκκίνηση, Κορδόνι/Μίζα /
Διαστάσεις Μ/Π/Υ 173x82x119 cm
Βάρος 64,5 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Υγρό σφραγιστικό ελαστικών “Plattfuss-Stop”

Μειώνει τους χρόνους βλάβης λόγω σκασμένων ελαστικών (950ml)

» read on
product-image

Μπαταρία AS-Motor 56 Volt 10 Ah

Μπαταρία ιόντων λιθίου υψηλής απόδοσης 56 Volt 10 Ah, 560 Wh, μπαταρία πλάτης 28 Ah, 1.568 W.

product-image

Μπαταρία AS-Motor 56 Volt 12 Ah

Μπαταρία ιόντων λιθίου υψηλής απόδοσης 56 Volt 12 Ah, 672 Wh.

product-image

Φορτιστής για ηλεκτρική μπαταρία AS-Motor 56 Volt 10 Ah

Χρόνος φόρτισης 10 Ah 0-100% σε 70 λεπτά.

product-image

Γρήγορος φορτιστής για μπαταρία AS-Motor Electric 56 Volt 700 Watt 10/12 Ah

Γρήγορος φορτιστής 700W για ελάχιστο χρόνο φόρτισης. Χρόνος φόρτισης 10 Ah 0-100% σε 60 λεπτά.
