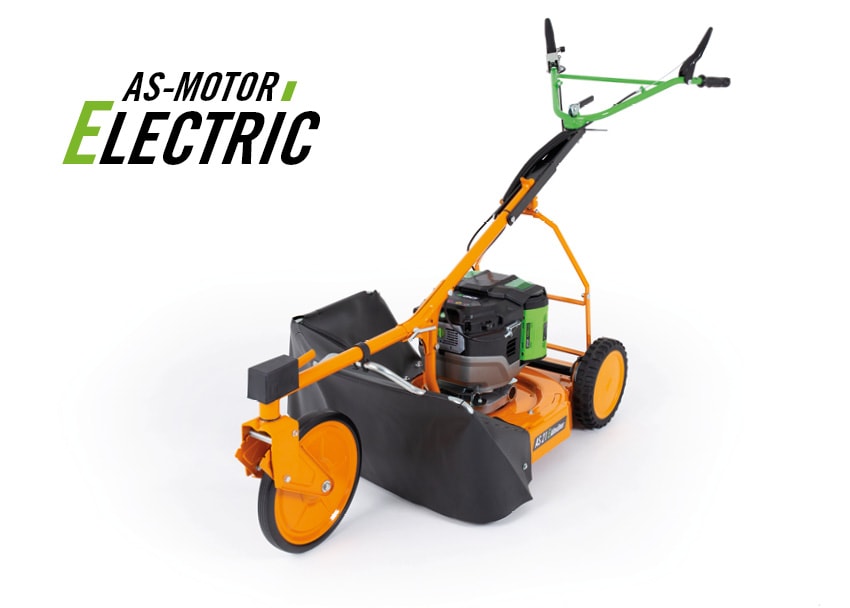

AS 21 Ηλεκτρικός Θεριστής**

4,4/6,0 kW (hp)

Categories

Handy and convenient battery-powered Allmäher with certain extras

Now with AS-Motor Electric drive. Among all-mowers, the AS 21 is one of the legendary AS-Motor classics. For decades, its design and mowing performance have proven themselves in the orchards of Europe. Equipped with the new AS-Motor Electric drive, it is more up-to-date than ever. The new 56 Volt AS-Motor Electric drive has the power of a conventional 200 cm3 gasoline engine. It is powered by two professional hand batteries with 12 Ah each. Together they provide an enormous 1.344 watt-hours of energy. For maximum range, a 28 Ah back battery can also be connected. With a record-breaking energy reserve of then 2.912 watt-hours.
It is suitable for grass heights up to 60 cm. The meadow mower has a third crankshaft bearing and friction discs on the wing blade to protect the motor in the event of collisions with unseen objects. The profiled drive wheels provide good propulsion.

Agile maneuvering thanks to the 3-wheel concept

The AS 21 E-Allmäher easily masters mowing on angles and curves. The swivel front wheel can be mechanically stopped in position, ensuring stable and comfortable mowing on slight inclines.

Cutting heights can be easily adjusted within the range of 55-80 cm via four cutting height levels on the front wheel and two cutting height levels on the rear wheels. The AS 21 E-Allmäher is equipped with a comfort handlebar that can be adjusted laterally and for height without tools. The entire guide rail can be folded forward for transport.

ELECTRIC ECOSYSTEM

Extend your operational capability in all directions with a comprehensive ECOSYSTEM. The AS-Motor Electric batteries are compatible with all professional hand tools from EGO Powertools.

Product advantages

Professional battery drive

56 Volt system with two times 12 Ah Li-Ion batteries. 3.460 watts maximum power and 1.344 watt-hours energy capacity.

Connection for back battery

For high range, a 28 Ah back battery can be connected in addition to the two hand batteries. Electronic parallel balancing of the connected batteries.

3-wheel concept

To mow on slopes and around obstacles.

Rear-wheel drive

Rear-wheel drive ensures optimal propulsion on slopes and level ground.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Gold medal for E-Allmäher from AS-Motor

The new E-Allmäher have been awarded with a gold medal at the demopark novelty competition 2021: the models AS 21 E-Allmäher, AS 62 E-Allmäher and AS 63 E-Allmäher of the manufacturer AS-Motor are the first high grass mowers with electric drive. Learn more.

Λεπτομέρειες προίόντος

product-image

Ηλεκτρική Κίνηση AS-Motor

Η πιο ισχυρή ηλεκτρική κίνηση στην αγορά. 56 βολτ, μέγιστη ισχύς 3.460 βατ. Δύο υποδοχές μπαταριών, ενεργός ψύξη και δύο ταχύτητες λειτουργίας. Συνδεσιμότητα για πρόσθετη μπαταρία 1.568 Wh, 28 Ah.

product-image

Μπαταρία + φορτιστής

Δεν περιλαμβάνεται στην παράδοση: Μπαταρία υψηλής απόδοσης Li-ion 56 Volt 12 Ah, 672 Wh, πίσω μπαταρία 28 Ah, 1.568 Wh και γρήγορος φορτιστής. Χρόνος φόρτισης: 12 Ah 100% σε 60 λεπτά, 28 Ah 100% σε 210 λεπτά.

product-image

Ρυθμιζόμενη μπάρα χειρισμού

Η μπάρα καθοδήγησης μπορεί να ρυθμιστεί πλευρικά και σε ύψος χωρίς εργαλεία για να προσαρμοστεί σε κάθε χειριστή.

product-image

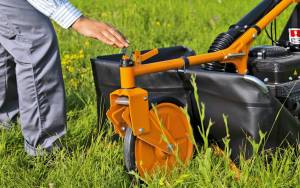

Διευθυνόμενο μπροστινό τροχό

Ο περιστρεφόμενος μπροστινός τροχός μπορεί να σταματήσει στη θέση του για ασφαλή διέλευση σε πλαγιές.

Προδιαγραφές

Πλάτος κοπής 51 cm
Μέγιστο ύψος χόρτων 60 cm
Κατασκευαστής κινητήρα AS-Motor
Μοντέλο κινητήρα AS-Motor Electric
Πλαϊνή εναπόθεση / όπισθεν εναπόθεση /
Μονή λεπίδα / μαχαίρι τύπου σταυρού / σφυρία τύπου Υ / /
Ύψος κοπής 55 - 80 mm
κίνηση, μηχανική/υδροστατική /
Αριθμός ταχυτήτων 1
Μέγιστη ταχύτητα 3 km/h
Διαστάσεις Μ/Π/Υ 200x74x99 cm
Βάρος 49 kg
Schalldruckpegel am Bedienplatz 75,7 dB
Hand-Arm-Schwingung 1,5 m/s²
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

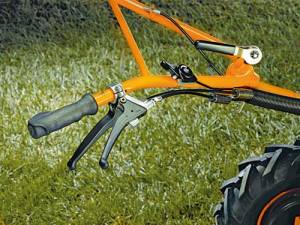

Φρένο πίσω τροχού

Η κίνηση στους πίσω τροχούς εξασφαλίζει την βέλτιστη πρόωση σε κλίσεις και επίπεδο έδαφος.

product-image

Χειρολαβές με προστασία χεριών από πλαστικό

Αποτελεσματική προστασία από βάτα και αγκάθια.

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Ειδικό μαχαίρι

Κατάλληλο για περιοχές με αμμώδη έδαφος.

product-image

Μπαταρία AS-Motor 56 Volt 10 Ah

Μπαταρία ιόντων λιθίου υψηλής απόδοσης 56 Volt 10 Ah, 560 Wh, μπαταρία πλάτης 28 Ah, 1.568 W.

product-image

Μπαταρία AS-Motor 56 Volt 12 Ah

Μπαταρία ιόντων λιθίου υψηλής απόδοσης 56 Volt 12 Ah, 672 Wh.

product-image

Φορτιστής για ηλεκτρική μπαταρία AS-Motor 56 Volt 10 Ah

Χρόνος φόρτισης 10 Ah 0-100% σε 70 λεπτά.

product-image

Γρήγορος φορτιστής για μπαταρία AS-Motor Electric 56 Volt 700 Watt 10/12 Ah

Γρήγορος φορτιστής 700W για ελάχιστο χρόνο φόρτισης. Χρόνος φόρτισης 10 Ah 0-100% σε 60 λεπτά.
