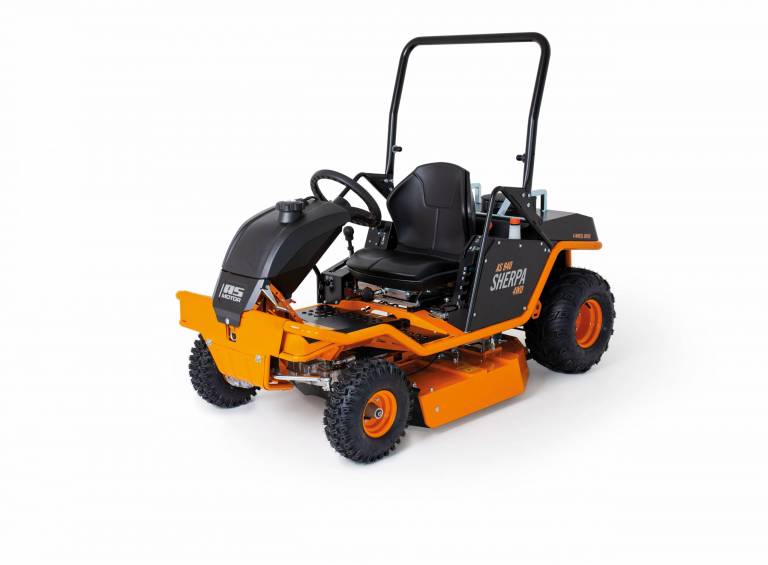

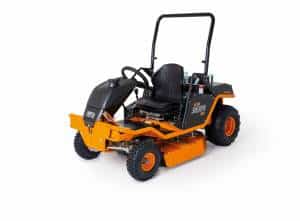

Χορτοκοπτικό τρακτέρ AS 940 Sherpa 4WD

Categories

High-grass, ride-on mower with permanent all-wheel drive

The AS 940 Sherpa 4WD is a robust, versatile ride-on mower for difficult terrain and high growth. The machine’s 2-cylinder Briggs & Stratton engine with 724 ccm displacement, up to 27 hp and an oil and fuel pump achieve work rates reaching 5,500 m² per hour. Permanent all-wheel drive delivers better traction uphill and stronger, safer braking downhill. The limited slip differential can be activated at any time for more safety. Hydrostatic transmission is controlled exclusively via the drive lever, which controls forward and reverse movements as well as the brake and the parking brake. An additional brake pedal returns the drive lever to neutral and automatically engages the parking brake.

Equipped with the AS cross-blade system, the AS 940 Sherpa 4WD delivers impressive mulching results in grass and dense growth up to 1.5 meters high. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 50–105 cm and an option mulch kit is available for even finer mulching results.

Stability and comfort

With a highly stable tubular frame, the AS 940 Sherpa 4WD performs even under harsh conditions. Operators up to 1.9 tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

The AS 940 Sherpa 4WD is engineered for continuous operation with two separate ventilation circuits for the engine and hydrostatic transmission. The engine takes in air from above and discharges it to the side, while the hydrostatic transmission takes air from the rear and discharges it downward. This system prevents overheating and ensures the machine’s long service life.

The AS-Motor all-wheel drive ride-on mowers in a new design

The all-wheel drive models of the AS-Motor Sherpa family will appear in a new design in the future. Visually, the new 2023 Sherpa 4WD models are even more attractive with a new paint finish, an additional front panel and the newly designed decals. But the new AS Sherpa 4WD high grass mowers also offer a number of technical innovations.

All all-wheel drive AS Motor Sherpa 2023 models will in future be fitted with anti-puncture tyre sealant as standard – downtimes due to flat tyres are now a thing of the past. The new fuel tank of the Sherpas offers more volume (17 litres), a larger tank opening and a level indicator as standard. The new locking mechanism of the foldable bar provides easier handling and makes the bar less susceptible to damage. There is also improved freedom of movement when operating the driving lever. In future, the protective cloth between the engine and the seat will no longer be elaborately riveted, but locked by robust magnets. Accessibility to the engine, for example when changing the oil, is significantly improved.

Product advantages

All-wheel drive (AS 940)

Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Ergonomic sitting position provides excellent driving comfort

Length-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.

Stable tube frame

High stability and torsional rigidity with heavy load.

Optimal all-terrain mobility

Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Stable, folding bar

Greater operator safety in the machine's limit area.

Excellent – German Design Award Winner 2023

The consistently sustainable product design of the powerful high grass mowers convinced the top-class jury of the German Design Award. In the citation it says: “The AS Sherpa 4WD was developed specifically for mowing tall grass meadows, which its striking functional design expresses perfectly. A compact ride-on mower reduced to the essentials for sustainable and ecologically oriented green maintenance.”

Λεπτομέρειες προίόντος

product-image

Σύστημα κοπής AS

Κλειστό σύστημα κοπής με σύστημα διασταυρούμενων λεπίδων και λεπίδες με ρουλέ που υποχωρούν σε εμπόδια.

product-image

Ξεχωριστή παροχή αέρα για ψύξη

Ξεχωριστή παροχή αέρα για ψύξη του κινητήρα και υδροστατικό κιβώτιο ταχυτήτων για βέλτιστη απόδοση.

product-image

Διαφορικό περιορισμένης ολίσθησης με διακόπτη

Άνετη ενεργοποίηση του διαφορικού περιορισμένης ολίσθησης μέσω πεντάλ για εξαιρετική πρόωση και έλξη.

product-image

Σταθερή, αναδιπλώσιμη ράβδος

Μεγαλύτερη ασφάλεια για τον χειριστή στις άκρες της μηχανής.

Προδιαγραφές

Πλάτος κοπής 90 cm
Κατασκευαστής κινητήρα B&S
Μοντέλο κινητήρα Professional Series 8
4χρονος κινητήρας, Μονοκύλινδρος /Δικύλινδρος /
Κυβικά εκατοστά 724 cm³
Μέγιστη ιππόδύναμη 20,1/27,0 kW (hp)
Ιπποδύναμη 16,5/22,4 kW (hp)
Ταχύτητα 3300 στροφές ανά λεπτό
κἰνηση, 2WD όπισθεν / 4WD μόνιμη /
Κίνηση, υδροστατική μετάδοση κίνησης
Μέγιστη ταχύτητα 6,2 km/h
Διαφορικό περιορισμένης ολίσθησης
Αυτόματο χειρόφρενο
Μονή λεπίδα / μαχαίρι τύπου σταυρού / σφυρία τύπου Υ / /
Πλαϊνή εναπόθεση / όπισθεν εναπόθεση /
Κλειστού τύπου κοπτικό στοιχείο
Κοπτικό στοιχείο που επιπλέει
Ύψος κοπής 50 - 105 mm
Χωρητικότητα δοχείου 17 ltr
Ανάρτηση θέσης χειριστή, Εργοστασιακή /Προαιρετική /
Διαστάσεις Μ/Π/Υ 191x98x152 cm
Βάρος 290 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Συσκευή αποτροπής εντόμων

Η συσκευή αποτροπής εντόμων της AS-Motor είναι ένα καινοτόμο εξάρτημα κοπής που προστατεύει τους επικονιαστές και την μικρή άγρια ζωή. Επιστημονικά δοκιμασμένη για να αυξήσει τα ποσοστά διαφυγής εντόμων, εξασφαλίζει βιώσιμο κούρεμα ενώ διατηρεί την αποδοτικότητα. Σχεδιασμένο για ανθεκτικότητα, προσαρμοστικότητα και εύκολη ολοκλήρωση με επαγγελματικά μηχανήματα κοπής της AS-Motor.

» read on
product-image

Τρέιλερ

Χώρος φορτίου: Μ = 1071 mm, Π = 607 mm, ύψος πάνελ: 274 mm. Επιτρεπόμενο συνολικό βάρος: 100 kg. Το πίσω πάνελ μπορεί να αφαιρεθεί.

product-image

Συζευκτής για Σέρπα (Sherpa)

Για τη σύνδεση του ρυμουλκουμένου AS.

product-image

Λεπίδα αποχιονισμού

Πλάτος: 1107 mm, ύψος: 348 mm. Ρυθμιζόμενο και στις δύο πλευρές.

product-image

Κιτ ανακύκλωσης χόρτου – AS Σέρπα

Για ακόμα πιο λεπτή κοπριά και πιο ομοιόμορφα αποτελέσματα κοπής σε γκαζόν με χόρτο μέχρι 40 cm ύψος.

product-image

Αλυσίδες για το χιόνι

Αλυσίδες διασταυρούμενης τροχιάς για τους κινητήριους τροχούς.

product-image

Διπλοί τροχοί

One pair (2x2) of rear twin tyres with extreme tread pattern for highest traction.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Μοχλός στρίψιματος για το τιμόνι

Διευκολύνει το χείρισμα και την ευελιξία με το ένα χέρι σε επίπεδο έδαφος.

product-image

Υγρό σφραγιστικό ελαστικών “Plattfuss-Stop”

Μειώνει τους χρόνους βλάβης λόγω σκασμένων ελαστικών (950ml)

» read on
