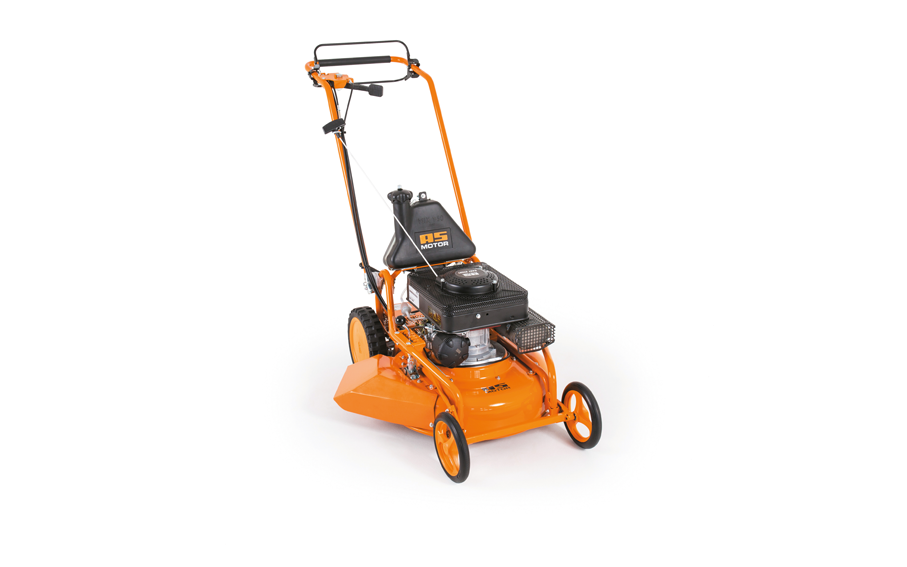

AS 510 ProClip 2in1 2T A

Categories

2-stroke power for mowing and mulching

The AS 510 ProClip 2in1 2T A is equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC. The AS 2-stroke engine maintains engine lubrication regardless of position, enabling work on inclines of 40 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque ensures that the power of the AS 510 ProClip 2in1 2T A is not interrupted.
A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles. A variator allows the speed to be conveniently adjusted from 2.1–4.3 km/h while in motion. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, leading to extremely uniform cutting results. Cutting height can be adjusted from 40–90 mm via a spring-supported system.

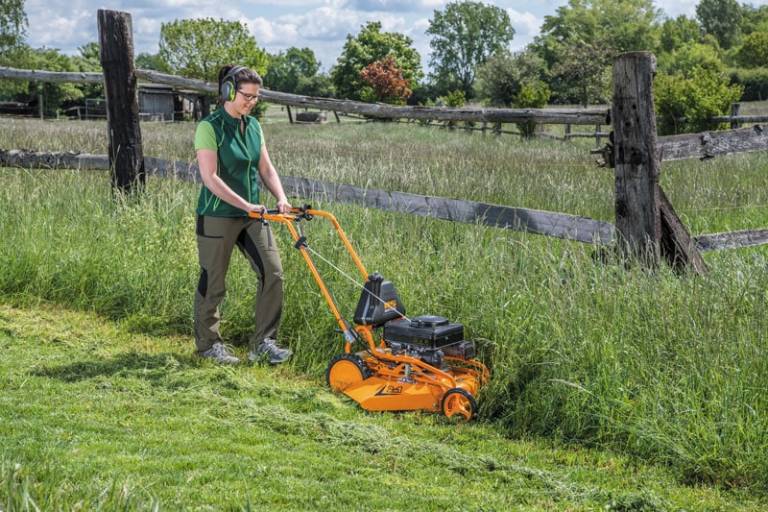

The AS 510 ProClip 2in1 2T ES A is a combination machine that allows the operator to choose between mowing and mulching. The machine is factory-equipped with an easy-to-mount mulch plate, and side discharge deflector for grass up to 50 cm high. Ideal for overgrown lawns and extended mowing intervals on natural meadows.

Mulching saves time and money

The specially-designed mulching blade cleanly cuts grass up to 20 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s three cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out. The AS 510 ProClip 2in1 2T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag as well as cost-intensive cuttings disposal.
Mow or mulch: The AS 510 ProClip 2in1 2T A is factory-equipped with an easy-to-mount mulch plate and side discharge deflector. Thus grass up to 50 cm high can be mowed with side discharge.

Product advantages

Engine suitable for slopes

The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.

2in1 function

Mulch or mow with side discharge, the AS 510 2in1 can do both.

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)

Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Stable double frame

Stable tube frame with replaceable mulching unit.

Λεπτομέρειες προίόντος

product-image

Σταθερή μονάδα μουλχιάρισματος

Κλειστή και βαθιά μονάδα μουλχιάρισματος για ομοιόμορφα αποτελέσματα.

product-image

Ρύθμιση ύψους κοπής

Κεντρική ρύθμιση ύψους υποστηριζόμενη από ελατήριο.

product-image

Ειδικοί μπροστινοί τροχοί

Τροχοί με διπλά έδρανα μπαλλών, ομαλή λειτουργία, πιέζουν πολύ λίγο το γκαζόν.

product-image

Μπαρά χειρισμού

Σταθερή ρύθμιση ύψους μπάρας χωρίς εργαλεία.

Προδιαγραφές

Πλάτος κοπής 51 cm
Μέγιστο ύψος χόρτων για "mulching" 20 cm
Κατασκευαστής κινητήρα AS-Motor
Μοντέλο κινητήρα AS 165 ES
Μονοκύλινδρος κινητήρας 4χρονος/2χρονος /
Μέγιστη ιππόδύναμη 4,4/6,0 kW (hp)
Ιπποδύναμη 2,8/3,8 kW (hp)
Ταχύτητα 2800 στροφές ανά λεπτό
Τρίτο ρουλεμάν στροφαλοφόρου για προστασία κινητήρα
100% λειτουργία mulching
Επιπλέον πλαϊνή εναπόθεση
Ύψος κοπής 40 - 90 mm
Κεντρική ρύθμιση ύψους κοπής
Ρύθμιση ύψους κοπής, αριθμός θέσεων 6
Πίσω κίνηση
Αριθμός ταχυτήτων Vario
Μέγιστη ταχύτητα 4,3 km/h
Ρυθμιση χειριστιρίου: Ύψος
Χωρητικότητα δοχείου 5 ltr
Διαστάσεις Μ/Π/Υ 139x55x100 cm
Βάρος 48 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Δίχρονο Λάδι της AS "Titan 2T"

Λάδι δύο χρόνων υψηλής απόδοσης, για μια βέλτιστη οικολογική αναλογία μίξης. Συνιστάται για όλους τους κινητήρες δύο χρόνων της AS. Έχει δοκιμαστεί και εγκριθεί για την συνιστώμενη αναλογία μίξης 1:100. Είναι επίσης κατάλληλο για αναλογία μίξης 1:50. Αντικαθιστά το προηγούμενο λάδι μας TITAN 2T 100S, το οποίο δεν είναι πλέον διαθέσιμο.
