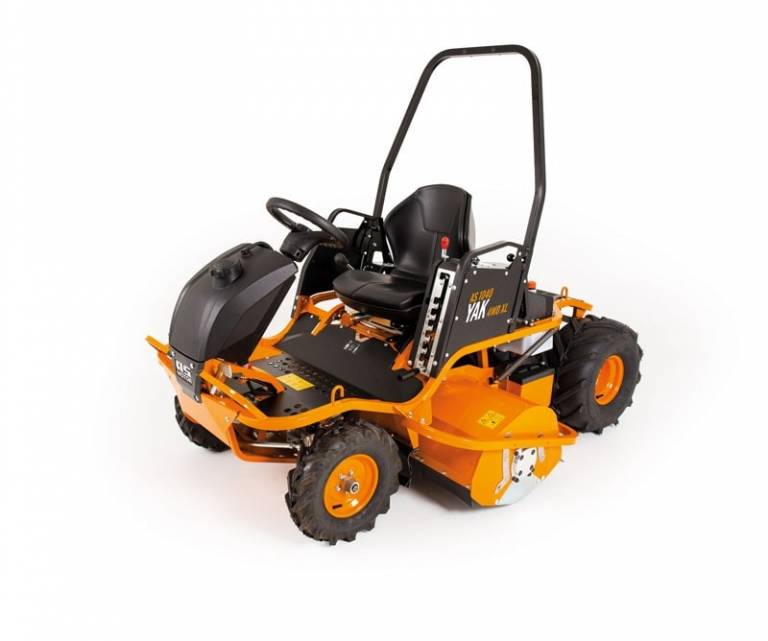

AS 1040 YAK 4WD XL

Categories

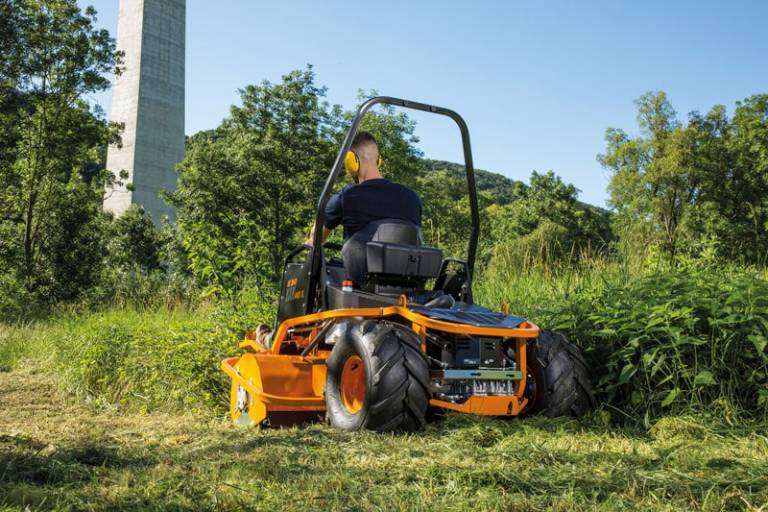

Strong, robust, at home in difficult off-road terrain

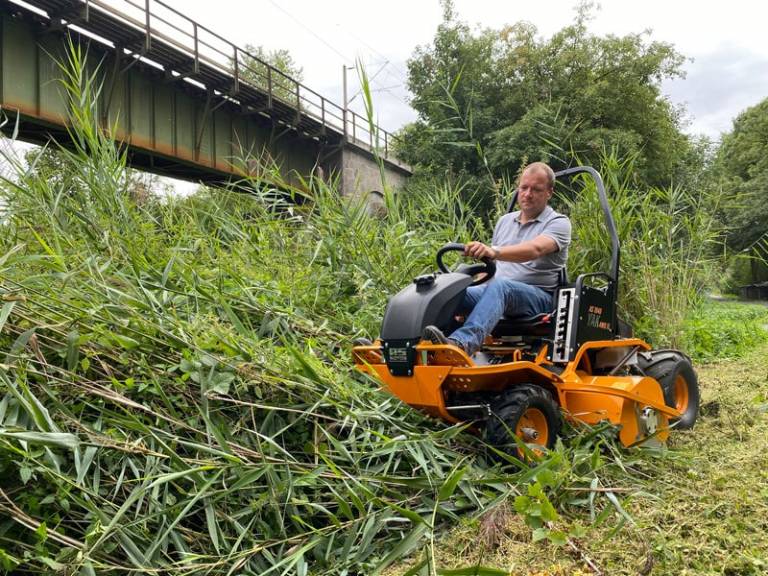

The robust ride-on flail mower AS 1040 YAK 4WD XL is made for the tough use in uneven, rough, steep and undulating terrain. The ride-on mower shreds extensive green areas, growth up to 1.50 metres, undergrowth and scrub effortlessly and reliably. This makes this flail mower suitable for professional use by service providers, local authorities and garden and landscaping contractors. Essential for the off-road capability is the low centre of gravity and the large XL tyres of the machine for even more ground clearance than the AS 1040 YAK 4WD.

Power pack with direct flail shaft drive

The AS 1040 YAK 4 WD XL is powered by a professional Vanguard V-Twin engine. The horizontal engine delivers a maximum of 23 hp (17.2 kW) at 627ccm displacement and transmits the power via V-belts directly to the flail shaft. Optimum fresh air supply to the engine is ensured by the cyclone air filter. Thanks to the oil and fuel pump, the AS 1040 YAK 4WD XL is fully suitable for slopes.

Stepless four-wheel drive with cruise control function

Thanks to the hydrostatic drive, the ride-on flail mower can be steered comfortably and continuously in the range of 7.3 km/h forwards and 6.8 km/h backwards. The permanent four-wheel drive and XL ground clearance ensure the best possible propulsion on any terrain. The rear axle differential can be locked at any time by foot pedal. Driving is simple and comfortable using the hand control lever. The automatic parking brake and the cruise control function are also integrated in the drive lever. For safety reasons, the machine also has an emergency brake pedal for the right foot, just like a passenger car.

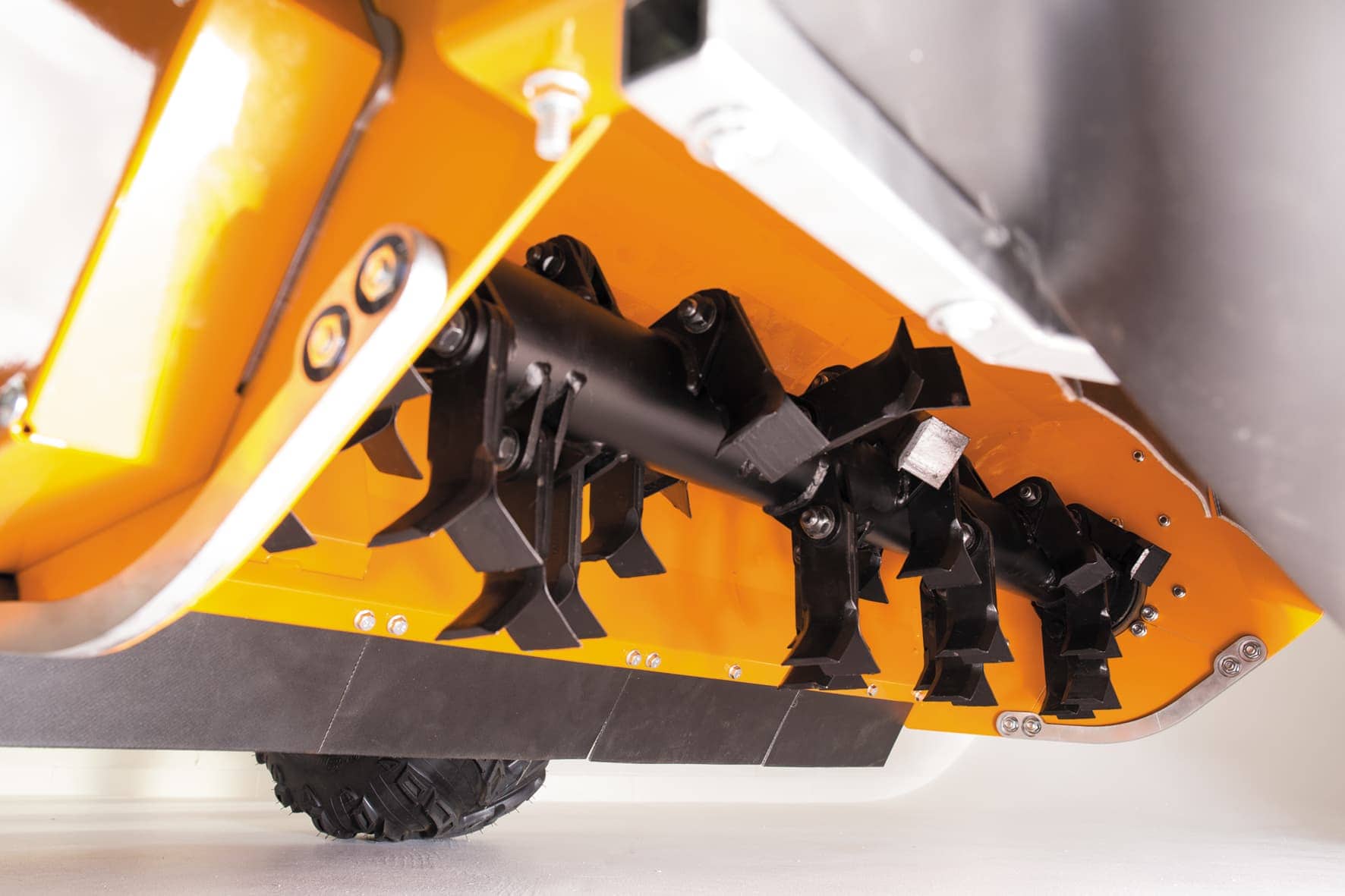

Surfing flail mower with Y flails

The mulch mowing deck with 56 Y flails and a working width of one metre creates area outputs of up to 7,300 m²/h. The cut material is deposited as a mulch layer evenly over the entire working width. The cutting pattern, even with very high vegetation, is visually homogeneous and attractive. 7 levels are available for adjusting the cutting height from 30-110 mm. The pendulum suspension of the mowing deck allows it to move upwards when sitting on the sides or when applying high force to the blades (surfing mowing deck). Damage to the cutting deck, rotor and flails is thus prevented as far as possible. The asymmetrical arrangement of the mowing deck enables efficient mowing of edge areas and obstacles.

High seating comfort and ergonomics

The ergonomic and upright sitting position in the machine ensures ample legroom for operators up to 1.95 m tall. The bucket seat can be adjusted in length to suit any user. The innovative suspension system with end position damping is also individually and continuously adjustable to suit every operator. In addition, all operating elements are logically arranged and conveniently accessible. Aluminium side panels protect the driver’s hands from thorns and undergrowth. A standard puncture protection with AS Motor „Plattfuss-Stop reliably prevents flat tires.

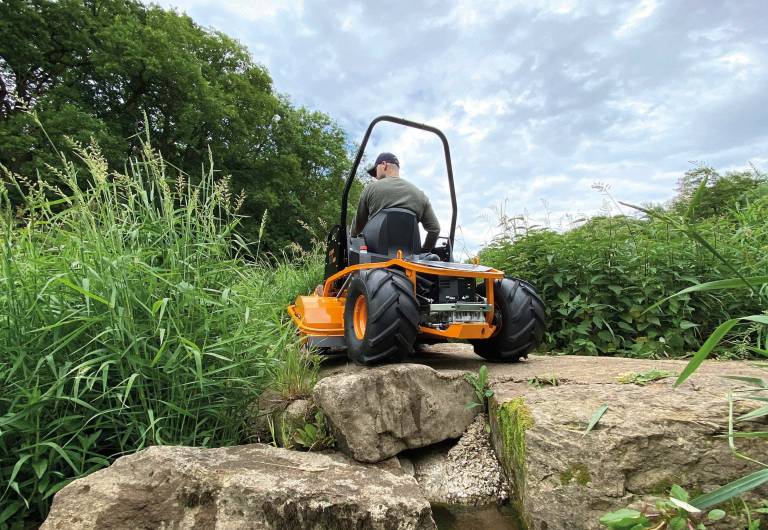

Best off-road capability

Permanent four-wheel drive with switchable differential lock for the rear axle. Large XL-size tyres with high ground clearance and AS Motor tyre sealant as standard.

Flail over rotary?

Stable and robust asymmetrically arranged surfing flail mower unit. The mower deck and the flails themselves give way to uneven ground and foreign objects.

Uniform grass placement

Perfect mowing results over the entire working width.

Made for professionals

Flail rotor drive and diminished need for path overlap guarantee high work rates.

Robust and durable

Stable, square-tube frame with weight-optimized design, low-maintenance hydrostatic transmission and optimal cooling.

Extremely suitable for slopes

Low centre of gravity and 4WD guarantee safety on slopes.

Stable lateral position

Balanced weight distribution – 45% on the front axle and 55% on the rear – ensures outstanding traction and safe work on every terrain.

Safety first

Maximum operator safety thanks to stable folding bar, integrated safety switch in the driver seat, and emergency stop foot pedal. Lashing points on the device enable safer transport.

Easy maintenance

Flails and drive belt are easily replaced via appropriate service cut-outs and openings. Fast access to all maintenance points.

Λεπτομέρειες προίόντος

product-image

Βέλτιστη εργονομία

Όρθια θέση καθίσματος, ιδανική τοποθέτηση τιμονιού και χώρος για τα πόδια για χειριστές έως 1,95 μ. ύψος. Πλευρικοί αποκλιντήρες προστατεύουν τον χειριστή από πυκνή βλάστηση και αγκάθια. Κάθισμα με κουβά με νεοαναπτυγμένο σύστημα αναρτήσεων καθίσματος.

product-image

Άνετη οδήγηση

Μοναδικό: όλες οι λειτουργίες (προς τα εμπρός, προς τα πίσω, στάση, φρένο στάθμευσης) συνδυασμένες σε έναν μοχλό μετάδοσης για λειτουργία χωρίς κόπο. Συνεχώς μεταβαλλόμενη υδροστατική μετάδοση.

product-image

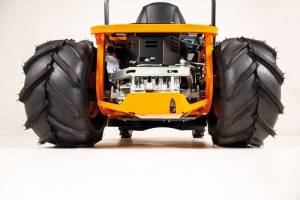

Ύψος από το έδαφος XL

Ελαστικά XL για αυξημένο ύψος από το έδαφος και γεμάτα με σφραγιστικό ελαστικών AS-Motor.

product-image

Συστήματος κοπής surfing

Η αναρτήσεις του συστήματος κοπής surfing κινείται προς τα πάνω σε ανώμαλο έδαφος. Εύκολη ρύθμιση ύψους μέσω υποστήριξης ελατηρίου.

Προδιαγραφές

Πλάτος κοπής 100 cm
Κατασκευαστής κινητήρα B&S
Μοντέλο κινητήρα Vanguard V-Twin 3864
4χρονος κινητήρας, Μονοκύλινδρος /Δικύλινδρος /
Κυβικά εκατοστά 627 cm³
Μέγιστη ιππόδύναμη 17,2/23,0 kW (hp)
Ιπποδύναμη 15,5/21,1 kW (hp)
Ταχύτητα 3600 στροφές ανά λεπτό
κἰνηση, 2WD όπισθεν / 4WD μόνιμη /
Κίνηση, υδροστατική μετάδοση κίνησης
Μέγιστη ταχύτητα 7,3 km/h
Διαφορικό περιορισμένης ολίσθησης
Αυτόματο χειρόφρενο
Μονή λεπίδα / μαχαίρι τύπου σταυρού / σφυρία τύπου Υ / /
Πλαϊνή εναπόθεση / όπισθεν εναπόθεση /
Κλειστού τύπου κοπτικό στοιχείο
Κοπτικό στοιχείο που επιπλέει
Ύψος κοπής 30 - 110 mm
Χωρητικότητα δοχείου 17 ltr
Ανάρτηση θέσης χειριστή, Εργοστασιακή /Προαιρετική /
Διαστάσεις Μ/Π/Υ 199x122x162 cm
Βάρος 351 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Συσκευή αποτροπής εντόμων

Η συσκευή αποτροπής εντόμων της AS-Motor είναι ένα καινοτόμο εξάρτημα κοπής που προστατεύει τους επικονιαστές και την μικρή άγρια ζωή. Επιστημονικά δοκιμασμένη για να αυξήσει τα ποσοστά διαφυγής εντόμων, εξασφαλίζει βιώσιμο κούρεμα ενώ διατηρεί την αποδοτικότητα. Σχεδιασμένο για ανθεκτικότητα, προσαρμοστικότητα και εύκολη ολοκλήρωση με επαγγελματικά μηχανήματα κοπής της AS-Motor.

» read on
product-image

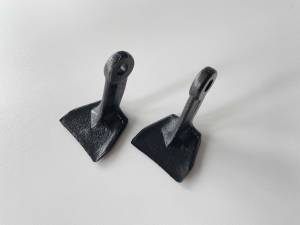

Σετ σφυριών

Πλήρες σετ. Για AS 1040 YAK και AS 1000 Ovis.

product-image

Μοχλός στρίψιματος για το τιμόνι

Διευκολύνει το χείρισμα και την ευελιξία με το ένα χέρι σε επίπεδο έδαφος.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Λεπίδα αποχιονισμού

Πλάτος: 1107 mm, ύψος: 348 mm. Ρυθμιζόμενο και στις δύο πλευρές.

product-image

Τρέιλερ

Χώρος φορτίου: Μ = 1071 mm, Π = 607 mm, ύψος πάνελ: 274 mm. Επιτρεπόμενο συνολικό βάρος: 100 kg. Το πίσω πάνελ μπορεί να αφαιρεθεί.

product-image

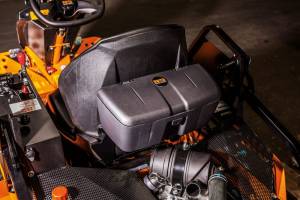

Κιτ κουτιού μεταφοράς YAK

Συμπαγές κουτί μεταφοράς για εγκατάσταση πίσω από το κάθισμα του οδηγού. Κατάλληλο για όλα τα μοντέλα YAK.
