AS 700 KM

Categories

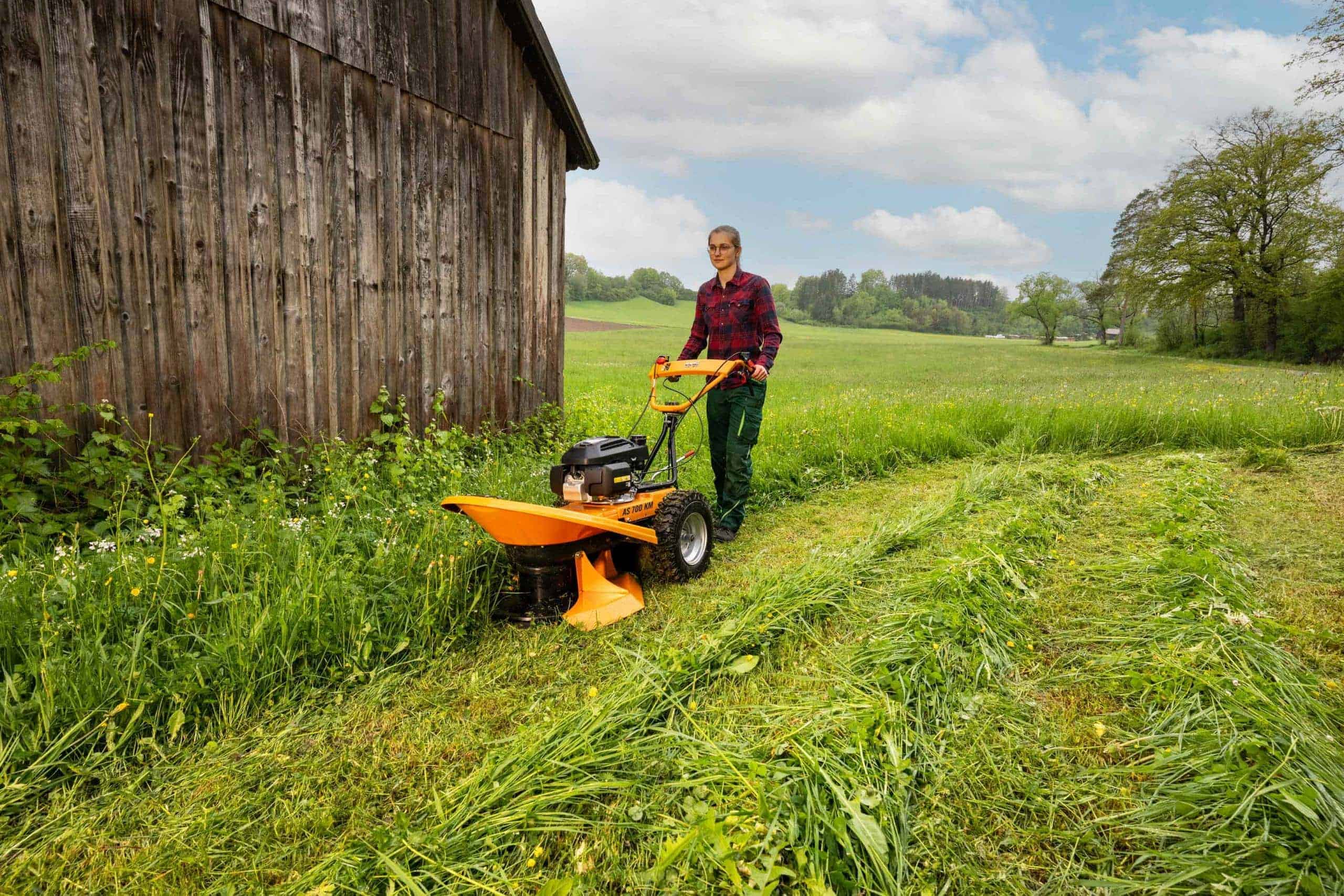

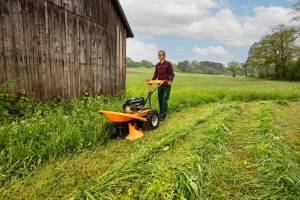

The disc mower – the smart alternative to the bar mower

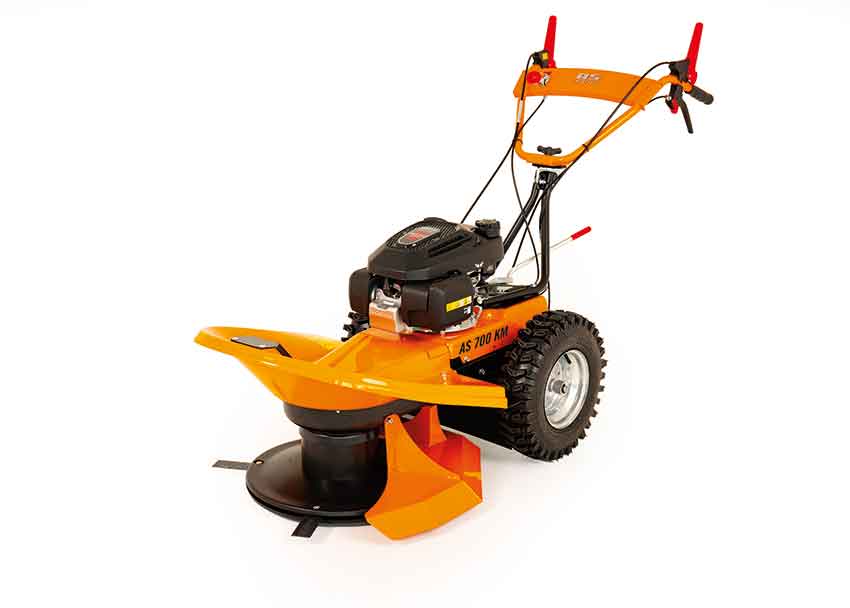

The AS 700 KM rotary mower was developed for high area performance. It is the most powerful rotary mower from AS-Motor to date and enables a further increase in area performance compared to its proven predecessors.

The AS 700 KM rotary mower has a cutting width of 70 cm and a high-torque 200 cm³ GCVx Honda engine. Often rotary mowers are also called drum mowers.

Thanks to its four-speed transmission with automatic locking differential, reverse gear and parking brake, our rotary mower is suitable for slopes up to 20°. The automatic limited slip differential prevents a single wheel from spinning, locking the axle and providing optimal propulsion. When cornering, the differential remains open for easy turning. In addition, the fine graduation of travel speeds (1.9 to 4.6 km/h) allows optimum adaptation to the crop.

The mowing drum is driven by a high-performance V-belt and is mounted on a disc. This ensures a constant distance of around 5 cm between the knife blades and the ground. Should ground contact or a collision with a foreign object nevertheless occur, the drum mower is equipped with four oscillating reversible blades. These can avoid the obstacle and thus reduce potential damage to the blades and the machine. If the blades become dull from heavy use, they can be loosened and reversed. The reversible blades are much easier to sharpen and change compared to a cutter bar. Thus, the rotary mower is ready for use again within a few minutes.

Product advantages

Low maintenance

Low maintenance due to reversible blades, easy to sharpen, easy to change, no plugging.

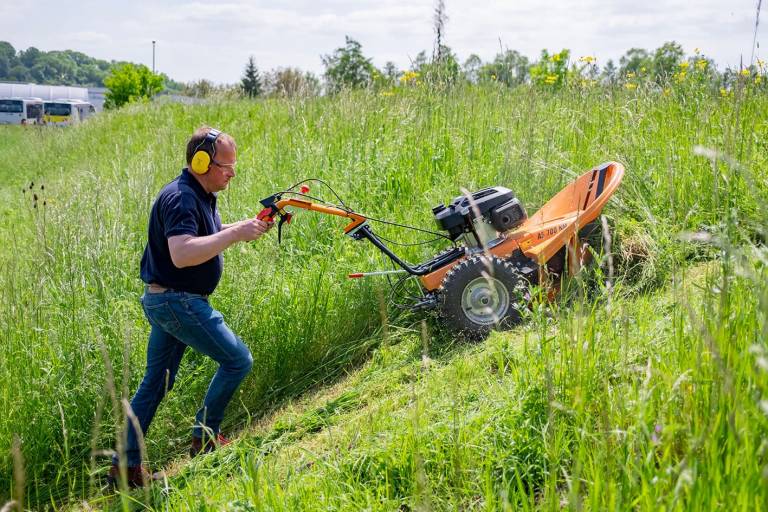

Slope capability

Slope capable up to 20°, thanks to automatic limited slip differential, four-speed transmission and ATV tires with good grip.

Gentle on the body

Significantly less vibration than with a bar mower.

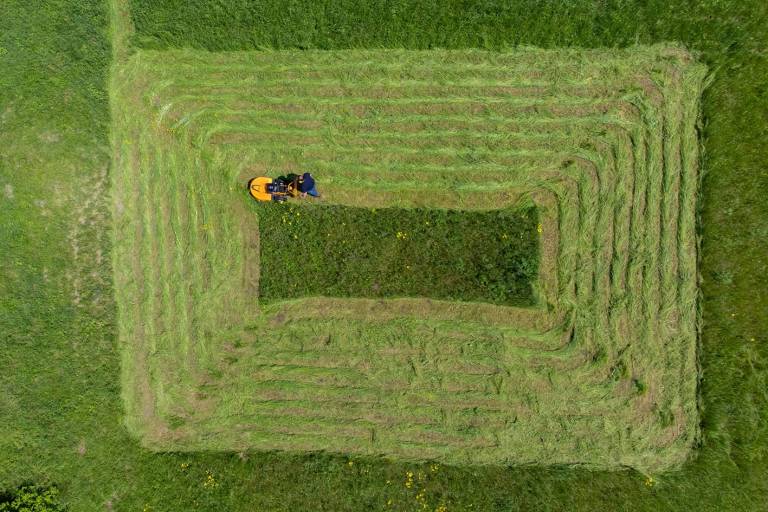

Grass is laid in swaths

Grass is deposited in windrows (rows) and can be conveniently collected.

Clean cut

Due to the high rotation speed and sharp blades, a clean cut is achieved, which ensures optimum forage quality.

Special feature: automatic locking differential

Only when the drive wheel is spinning, the differential lock activates automatically. Otherwise, it is inactive and the machine is freely controllable.

Λεπτομέρειες προίόντος

product-image

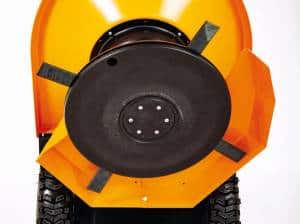

Μονάδα δισκοπριονιστή

Τέσσερις ταλαντωτές λεπίδες, με ανθεκτικό δίσκο κοπής, για ένα καθαρό μοτίβο κοπής.

product-image

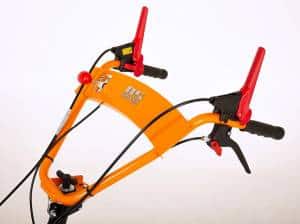

Ράβδος οδηγήσεως άνεσης

Ρυθμιζόμενη σε ατομικό μέγεθος, πλευρικά ρυθμιζόμενη προς τα αριστερά και τα δεξιά, με απόσβεση κραδασμών.

product-image

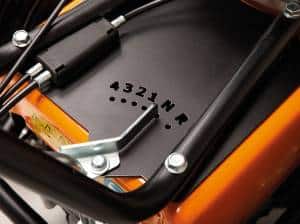

Μηχανικό κιβώτιο ταχυτήτων

Τέσσερις ταχύτητες προς τα εμπρός και μία όπισθεν για βέλτιστη ταχύτητα εργασίας.

product-image

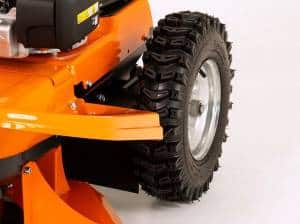

Ειδικό χαρακτηριστικό: το αυτόματο διαφορικό περιορισμένης ολίσθησης

Συνδυασμένο με το ελαστικό ATV υψηλής πρόσφυσης, εξασφαλίζει μέγιστη ικανότητα σε κλίσεις έως 20°.

Προδιαγραφές

Πλάτος κοπής 70 cm
Μέγιστο ύψος χόρτων 90 cm
Κατασκευαστής κινητήρα Honda
Μοντέλο κινητήρα GCVx 200
Μονοκύλινδρς. 4χρονος κινητήρας. 1
Μέγιστη ιππόδύναμη 4,2/5,6 kW (hp)
Ταχύτητα 3600 στροφές ανά λεπτό
Συμπλέκτης μαχαιριού
Πλαϊνή εναπόθεση
Ευέλικτες κοπτικές λεπίδες
Ρύθμιση ύψους κοπής, αριθμός θέσεων 1
Κίνηση τροχών
Αριθμός ταχυτήτων, με ιμάντα 4
Μέγιστη ταχύτητα 4,57 km/h
Κλείδωμα διαφορικού, αυτόματο
Ταχύτητα όπισθεν
Εκκίνηση, Κορδόνι/Μίζα /
Χωρητικότητα δοχείου 0,9 ltr
Διαστάσεις Μ/Π/Υ 176x74x112 cm
Βάρος 86 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

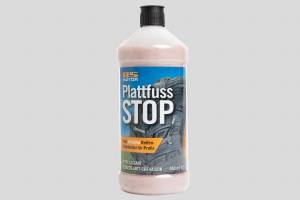

Υγρό σφραγιστικό ελαστικών “Plattfuss-Stop”

Μειώνει τους χρόνους βλάβης λόγω σκασμένων ελαστικών (950ml)
