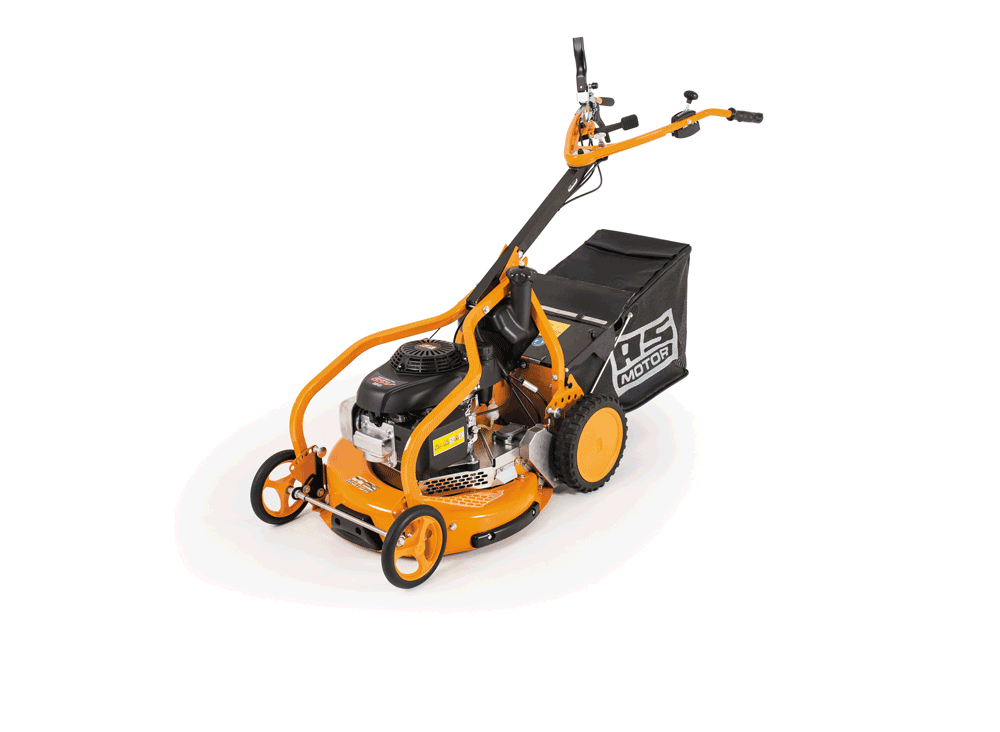

AS 531 4T MK B

Categories

Professional lawn mower with collection bag and added safety features

An absolute professional. The AS 531 4T MK B is a 3in1 lawn mower equipped with many extras and ideally suited for the care and maintenance of demanding green areas such as steep terrain and confined spaces. A mulch kit can be mounted and dismounted without tools, a feature that now comes as standard equipment. Thus, the AS 531 4T MK B 3in1 can be used as a perfect collecting mower, as a pretty good mulching mower or as a strong rear ejection mower for higher grass. The professional Kawasaki KAI engine delivers up to 3.4 kW (4.6 hp), making the AS 531 4T MK B an ideal choice for professional users and contractors.
The grass collection bag has 75 litres of capacity and a fill level indicator, with the bar arranged in the middle so it can be easily emptied.
The AS 531 4T MK B is the only machine in its class with a safety brake and limited slip differential. The parking brake activates as soon as the blade clutch lever is released and the mower comes to a standstill, regardless of how steep the slope. This function maximizes user safety.
The mower is easily operated with an open V-shape handlebar developed by AS-Motor: the left hand regulates speed from 3.0–4.5 km/h while the machine is in motion. The right hand steers and activates the blade clutch, the traction drive, and the parking brake. The blade clutch makes it possible to bring the blade to a standstill without switching off and restarting the engine, for example, when emptying the collection bag. A pivoting handlebar allows the AS 531 4T MK B to be used comfortably along house walls and shrubbery or when mowing next to parked cars. The handlebar has rubber-bearing support and VibrationProtect vibration damping that reduces hand-arm vibration to a minimum. In addition, optimal weight distribution ensures ergonomic handling and fatigue-free work.

A professional lawn mower - different from the rest

Unique features of the AS 531 4T MK B include:

  • automatic differential lock
  • automatic parking brake
  • open V-handlebar with VibrationProtect

Other features:

  • 3-litre tank with reserve function
  • mono bar for easy emptying of the collection basket
  • stable and weight-optimised steel frame
  • spring steel axle
  • individual wheel cutting-height adjustment
  • third crankshaft bearing and friction clutch close to the blade

Product advantages

Automatic parking brake (AS 531)

When the drive lever is released, the parking brake automatically engages and the machine stops, whether on a slope or level ground.

Special feature: automatic locking differential

Only when the drive wheel is spinning, the differential lock activates automatically. Otherwise, it is inactive and the machine is freely controllable.

Simple operating concept

Operation of parking brake, blade engagement, limited slip differential, drive function, speed adaptation, all with just three levers.

Variator

The variable speed adjustment allows optimal performance in all work conditions.

Weight distribution

Optimal weight distribution for ergonomic handling and fatigue-free work.

Mono bar with V-handlebar

Easy emptying of the collection basket through single-bar design. Ergonomic V-handlebar, laterally adjustable.

Λεπτομέρειες προίόντος

product-image

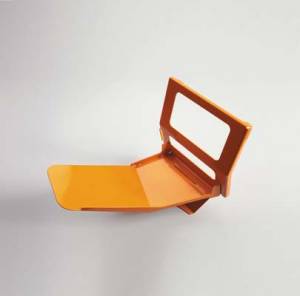

Λειτουργία 3 σε 1

Εξοπλισμένο από το εργοστάσιο με ένα εύκολο στη τοποθέτηση κιτ μούλχας. Κουρέψτε με σάκο συλλογής, πίσω εκτόξευση ή μούλχα.

product-image

Απόσβεση κραδασμών

Το VibrationProtect και η χειρολαβή σχήματος V με υποστήριξη ελαστικού ρουλέμαν μειώνουν τους κραδασμούς στο ελάχιστο.

product-image

Απορρόφηση κραδασμών του μπροστινού άξονα

Απορρόφηση κραδασμών μέσω άξονα ελατηρίου χάλυβα και ελαστικού απορροφητήρα.

product-image

Ειδικοί μπροστινοί τροχοί

Τροχοί με διπλή υποστήριξη σφαιρικών ρουλεμάν, ομαλή λειτουργία, πιέζουν πολύ λίγο χόρτο.

Προδιαγραφές

Πλάτος κοπής 53 cm
Μέγιστο ύψος χόρτων 30 cm
Κατασκευαστής κινητήρα Kawasaki
Μοντέλο κινητήρα FJ180V KAI
Κινητήρας, 4χρονος / 2χρονος /
Μέγιστη ιππόδύναμη 3,4/4,6 kW (hp)
Ιπποδύναμη 2,9/4,0 kW (hp)
Ταχύτητα 2800 στροφές ανά λεπτό
Χωρητικότητα δοχείου 3 ltr
Οπισθοκίνηση/ AWD /
Αριθμός ταχυτήτων Vario
Μέγιστη ταχύτητα 4,5 km/h
Αυτόματο χειρόφρενο
Διαφορικό περιορισμένης ολίσθησης
Φρένο
Συμπλέκτης μαχαιριού
Ανακύκλωση χόρτου, Εργοστασιακή / Προαιρετική /
Ύψος κοπής 30 - 80 mm
Ρύθμιση ύψους κοπής, κεντρική/ανά άξονα/ανά τροχό / /
Ρύθμιση ύψους κοπής, αριθμός θέσεων 6
Διαστάσεις Μ/Π/Υ 164x59x99 cm
Βάρος 61 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.
