Χόρτοκοπτική μηχανή AS 510 ProClip 2T ES A

Categories

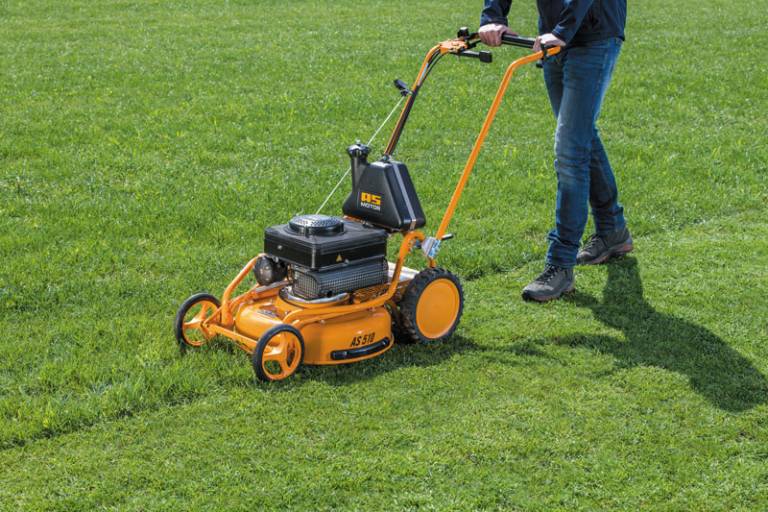

The professional mulching mower for slopes, with high torque and top performance

The AS 510 ProClip 2T A is equipped with the world’s only 2-stroke engine that meets the requirements stipulated by the EU Emissions Directive 97/68/EC. The AS 2-stroke engine maintains engine lubrication regardless of position, enabling work on inclines of 40 degrees and more without the risk of engine damage. In addition, the AS 2-stroke engine is factory-equipped with an EasyStart function; the CDI digital ignition system cuts the rpms required to start in half. The 2-stroke engine’s high torque ensures power even in tall grass.
A third crankshaft bearing and friction discs on the mulching blade protect the engine in the event of unseen obstacles while a variator allows the convenient adjustment of speed from 2.1–4.3 km/h while in motion. Double ball-bearing front wheels and rear wheel drive provide easy handling. The front wheels’ special wedge shape minimizes impact on the grass, which quickly springs back up to be cut by the blade. Cutting height can be adjusted to 6 levels from 40–90 mm via a spring-supported system.

Large, aggressive tread wheels ensure optimal traction and propulsion

The AS 510 ProClip 2T A saves 30% more time when compared with collection bag lawn mowers by avoiding the need to empty the collection bag as well as the time and cost-intensive process of disposing of the cuttings. The mulching blade cleanly cuts grass up to 18 cm high and simultaneously generates an airflow that whirls the cuttings in the mulching unit. The mulching blade’s three cutting edges chop and mulch the grass several times. The cuttings then sink into the turf, forming a layer of mulch that both fertilises and protects the lawn from drying out.

Product advantages

Engine suitable for slopes

The world's only AS 2-stroke engine with EasyStart has position-independent lubrication, ensuring safe operation even on steep slopes.

Up to 30% time saved

No collection basket, no cuttings disposal and fertilise the lawn simultaneously.

Blade shaft bearing arrangement protects the engine

Third crankshaft bearing and friction discs on the mulching blade ensure optimal engine protection.

Traction drive (AS 510)

Comfortable work through variable adjustable speed (variator) in conjunction with large, aggressive tread drive wheels for optimal traction.

Stable double frame

Stable tube frame with replaceable mulching unit.

Λεπτομέρειες προίόντος

product-image

Σταθερή μονάδα κοπής

Κλειστή και βαθιά μονάδα κοπής για ομοιόμορφα αποτελέσματα.

product-image

Ρύθμιση ύψους κοπής

Κεντρική ρύθμιση ύψους με υποστήριξη ελατηρίου.

product-image

Ειδικοί μπροστινοί τροχοί

Τροχοί με διπλή υποστήριξη ρουλεμάν, που τρέχουν ομαλά και πιέζουν πολύ λίγο το χόρτο.

product-image

Μπαρά χειρισμού

Σταθερή ρύθμιση ύψους μπάρας χωρίς εργαλεία.

Προδιαγραφές

Πλάτος κοπής 51 cm
Μέγιστο ύψος χόρτων για "mulching" 20 cm
Κατασκευαστής κινητήρα AS-Motor
Μοντέλο κινητήρα AS 165 ES
Μονοκύλινδρος κινητήρας 4χρονος/2χρονος /
Μέγιστη ιππόδύναμη 4,4/6,0 kW (hp)
Ιπποδύναμη 2,8/3,8 kW (hp)
Ταχύτητα 2800 στροφές ανά λεπτό
Τρίτο ρουλεμάν στροφαλοφόρου για προστασία κινητήρα
100% λειτουργία mulching
Ύψος κοπής 40 - 90 mm
Κεντρική ρύθμιση ύψους κοπής
Ρύθμιση ύψους κοπής, αριθμός θέσεων 6
Πίσω κίνηση
Αριθμός ταχυτήτων Vario
Μέγιστη ταχύτητα 4,3 km/h
Ρυθμιση χειριστιρίου: Ύψος
Χωρητικότητα δοχείου 5 ltr
Διαστάσεις Μ/Π/Υ 139x55x100 cm
Βάρος 48 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Ωρομετρητής

Τεκμηρίωση ωρών εργασίας.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Μπροστινός και πλευρικός προφυλακτήρας

Για την προστασία των μπροστινών τροχών.

product-image

Δίχρονο Λάδι της AS "Titan 2T"

Λάδι δύο χρόνων υψηλής απόδοσης, για μια βέλτιστη οικολογική αναλογία μίξης. Συνιστάται για όλους τους κινητήρες δύο χρόνων της AS. Έχει δοκιμαστεί και εγκριθεί για την συνιστώμενη αναλογία μίξης 1:100. Είναι επίσης κατάλληλο για αναλογία μίξης 1:50. Αντικαθιστά το προηγούμενο λάδι μας TITAN 2T 100S, το οποίο δεν είναι πλέον διαθέσιμο.
