Χορτοκοπτικός καταστροφέας AS 940 Σέρπα (Sherpa) 4WD με RC Τηλεχειριστήριο

Categories

The world’s first ride-on mower with remote control offers even more safety and convenience in difficult terrain

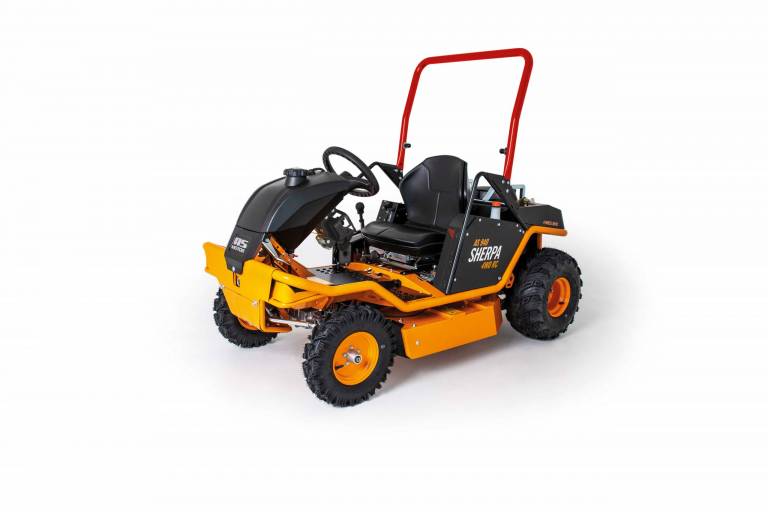

The world’s first ride-on mower with remote control, the AS 940 Sherpa 4WD RC can be operated comfortably both from the driver seat and via a professional remote control unit with a high range. Equipped with a professional Briggs & Stratton Series 8 engine and hydrostatic transmission, the AS 940 Sherpa 4WD RC is designed to perform on slopes.

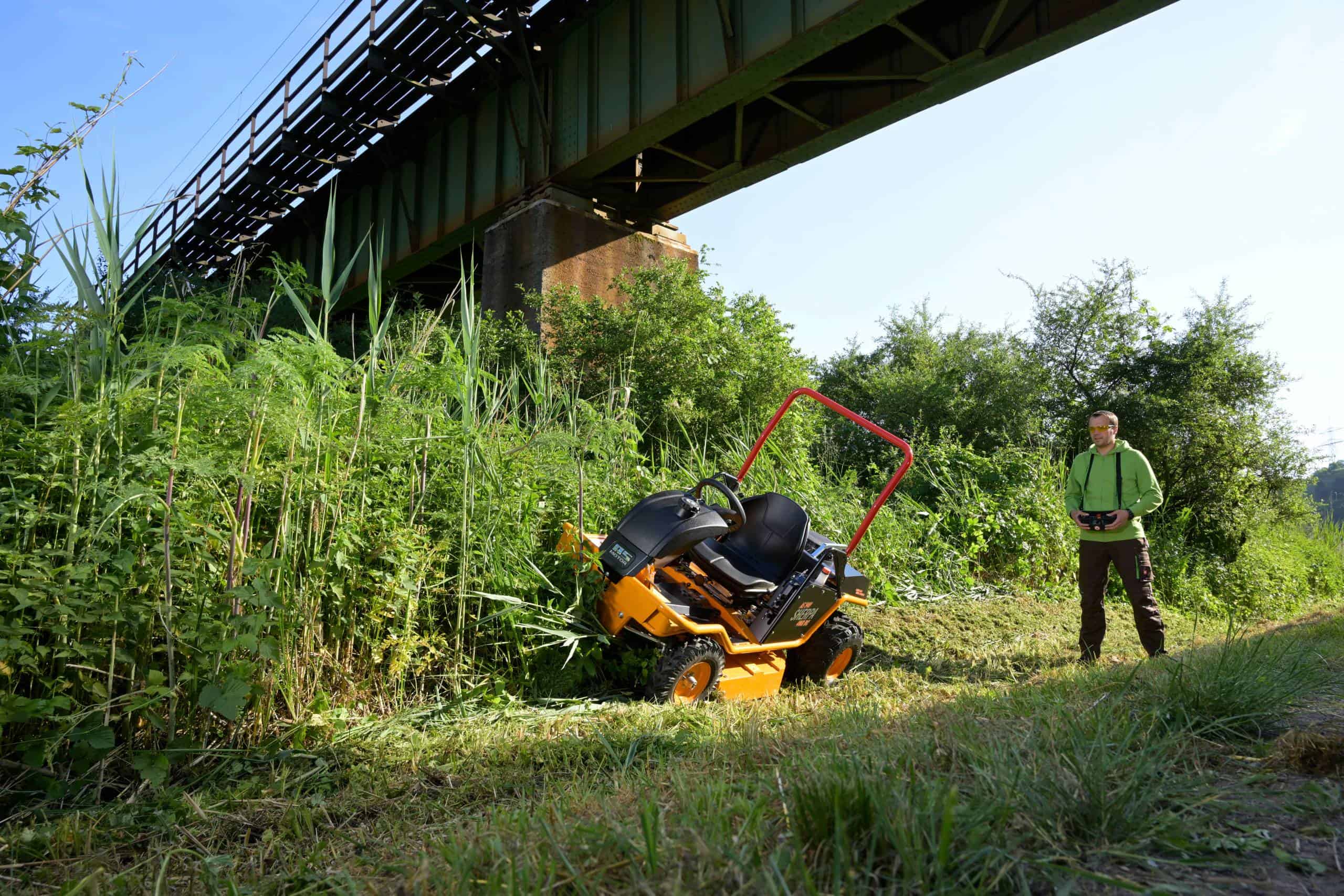

It is recommended to operate the machine from the driver seat for high area performance and optimal operator comfort on flat terrain. Remote-controlled operation is recommended for increased operator safety on slopes and inclines up to 33 degrees. The operator is also shielded from exhaust, noise, vibration, dust, pollen, insects and scrub. The following functions of the machine can be operated by remote control: start and stop, to drive forward, backwards and stop, cutting height adjustment, blade clutch, differential lock, steering trim and reverse. When the machine is operated from the driver seat, the remote control functions as a dashboard. The control levers of the remote control are progressive: the more the control lever is pressed, the higher the speed or the steering angle. When the control levers are released, the parking brake automatically engages and the steering moves into the middle position. Only a short training phase is needed to control the machine safely and precisely.

Fatigue-free work in ride-on mode

With a highly stable tubular frame, the AS 940 Sherpa 4WD RC performs even under harsh conditions. Operators up to 2 meters tall can operate the machine comfortably thanks to a length-adjustable seat and seat spring package. A low centre of gravity, folding bar and branch deflectors are added safety features, while lashing points integrated in the frame enable secure transport.

Closed surfing mower deck

Like the other Sherpa models, the AS 940 Sherpa 4WD RC’s cross-blade system delivers impressive mulching results in grass and dense growth. Bearing-supported blades cut the grass while a mulching blade positioned above them shreds the cuttings, which are then deposited between the wheels for added safety on slopes and wet grass. The mower deck’s surfing suspension yields upwards to obstacles, protecting the blades and turf from damage. Cutting heights can be adjusted to 5 levels from 80–135 cm via the remote control, whether in ride-on mode or operating from a distance.

Expert opinion: “Mowing on slopes or roadsides involve risks. Vibration and exhaust are detrimental to health and given new alternatives, it may possibly no longer be an acceptable risk to allow public works employees to operate traditional mowers in these circumstances” (Hendrik Rößmann, technical instructor at DEULA Westfalen-Lippe GmbH, KommunalTechnik, Issue 1, Jan / Feb 2018)

The all-wheel drive ride-on mowers from AS Motor in a new design

The 2023 all-wheel drive models of the AS Motor 940 Sherpa family will appear in new splendour in the future. With new paintwork, an additional front panel and the newly designed decals, the Sherpa’s are even more attractive. But the 2023 model year of the AS 4WD Sherpa family also offers some technical innovations.

The new ATV tyres on the AS 940 Sherpa XL and the remote-controlled ride-on mower AS 940 Sherpa RC feature even better performance when driving across slopes and better climbing ability. In future, all AS Motor 4WD Sherpa models will be equipped with the AS tyre sealant Plattfuss-Stop as standard – downtimes due to flat tyres will be a thing of the past. The new fuel tank of the Sherpas offers more volume (17 litres), a larger tank opening, a fuel level indicator and a closed circuit with less fuel evaporation. The new locking mechanism of the foldable bar ensures easier handling and improved freedom of movement when operating the driving lever. In future, the protective cloth between the engine and the seat will no longer be elaborately riveted, but locked in place by robust magnets. Accessibility to the engine, for example when adjusting the valves or changing the oil, is significantly improved. This was an idea from AS-Motor users and dealers. Many thanks for this practical improvement idea.

Product advantages

Remote-controlled or manual

Suited for all terrains: Fast and efficient mowing in ride-on mode, improved safety and convenience via radio remote control.

All-wheel drive (AS 940)

Permanent all-wheel drive ensures better traction uphill and stronger, safer braking downhill.

Surfing mulch-mower deck

Closed mower deck with AS cross-blade system. The main blade cuts, the cross-blade chops the cuttings. The surfing mower deck gives way upward on uneven terrain to protect against damage.

Ergonomic sitting position provides excellent driving comfort

Length-adjustable driver seat, innovative seat suspension and ergonomic sitting position provide comfort for tall operators during long work periods.

Stable tube frame

High stability and torsional rigidity with heavy load.

Optimal all-terrain mobility

Field stud tyres, switchable limited slip differential and an engine suitable for slopes ensure powerful traction on difficult terrain.

Variable hydrostatic transmission (ride-on mower)

Easy adaptation of the speed to every terrain with integrated, mechanical parking brake in the drive lever.

Stable, folding bar

Greater operator safety in the machine's limit area.

Silver medal at demopark novelty competition

demopark innovation competition 2017: The remote-controlled ride-on mower AS 940 Sherpa 4WD RC wins the silver medal. It can be operated both from the driver seat and via a professional remote control unit.

demopark innovation competition 2019: The diagnostic detective for professional mowers from AS-Motor wins the silver medal. The AS SherLog1.0 diagnostic device makes it possible for the servicing dealer to carry out a test within a few minutes in the workshop or on sit. The AS SherLog1.0 will initially be available for the remote-controlled ride-on mower AS 940 Sherpa 4WD RC.

Λεπτομέρειες προίόντος

product-image

Επαγγελματικός τηλεχειρισμός

Όλες οι σχετικές λειτουργίες μπορούν να ελεγχθούν χρησιμοποιώντας το τηλεχειριστήριο. Το τηλεχειριστήριο είναι βολικά ενσωματωμένο κάτω από το τιμόνι για λειτουργία με αναβάτη.

product-image

Εύκολη αλλαγή λειτουργίας

Μηχανική μεταφορά από τη λειτουργία με αναβάτη στη λειτουργία τηλεχειρισμού μέσω ενός μοχλού αλλαγής.

product-image

Δεξαμενή κοπής AS

Κλειστή, δεξαμενή κοπής με σύστημα διασταυρούμενων λεπίδων και λεπίδες υποστηριζόμενες από έδρανα που υποχωρούν σε εμπόδια.

product-image

Χωριστή παροχή ψύξης αέρα

Χωριστή ψύξη αέρα του κινητήρα και υδροστατική μετάδοση βελτιστοποιούν την απόδοση.

Προδιαγραφές

Πλάτος κοπής 90 cm
Κατασκευαστής κινητήρα B&S
Μοντέλο κινητήρα Professional Series 8
4χρονος κινητήρας, Μονοκύλινδρος /Δικύλινδρος /
Κυβικά εκατοστά 724 cm³
Μέγιστη ιππόδύναμη 20,1/27,0 kW (hp)
Ιπποδύναμη 16,5/22,4 kW (hp)
Ταχύτητα 3300 στροφές ανά λεπτό
κἰνηση, 2WD όπισθεν / 4WD μόνιμη /
Κίνηση, υδροστατική μετάδοση κίνησης
Μέγιστη ταχύτητα 6,7 km/h
Διαφορικό περιορισμένης ολίσθησης
Αυτόματο χειρόφρενο
Μονή λεπίδα / μαχαίρι τύπου σταυρού / σφυρία τύπου Υ / /
Πλαϊνή εναπόθεση / όπισθεν εναπόθεση /
Κλειστού τύπου κοπτικό στοιχείο
Κοπτικό στοιχείο που επιπλέει
Ύψος κοπής 80 - 135 mm
Χωρητικότητα δοχείου 17 ltr
Ανάρτηση θέσης χειριστή, Εργοστασιακή /Προαιρετική /
Διαστάσεις Μ/Π/Υ 191x106x156 cm
Βάρος 325 kg
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Accessories

product-image

Συσκευή αποτροπής εντόμων

Η συσκευή αποτροπής εντόμων της AS-Motor είναι ένα καινοτόμο εξάρτημα κοπής που προστατεύει τους επικονιαστές και την μικρή άγρια ζωή. Επιστημονικά δοκιμασμένη για να αυξήσει τα ποσοστά διαφυγής εντόμων, εξασφαλίζει βιώσιμο κούρεμα ενώ διατηρεί την αποδοτικότητα. Σχεδιασμένο για ανθεκτικότητα, προσαρμοστικότητα και εύκολη ολοκλήρωση με επαγγελματικά μηχανήματα κοπής της AS-Motor.

» read on
product-image

Τρέιλερ

Χώρος φορτίου: Μ = 1071 mm, Π = 607 mm, ύψος πάνελ: 274 mm. Επιτρεπόμενο συνολικό βάρος: 100 kg. Το πίσω πάνελ μπορεί να αφαιρεθεί.

product-image

Συζευκτής για Σέρπα (Sherpa)

Για τη σύνδεση του ρυμουλκουμένου AS.

product-image

Λεπίδα αποχιονισμού

Πλάτος: 1107 mm, ύψος: 348 mm. Ρυθμιζόμενο και στις δύο πλευρές.

product-image

Κιτ ανακύκλωσης χόρτου – AS Σέρπα

Για ακόμα πιο λεπτή κοπριά και πιο ομοιόμορφα αποτελέσματα κοπής σε γκαζόν με χόρτο μέχρι 40 cm ύψος.

product-image

Κλισιόμετρο

Βολική οθόνη κλίσης κλίσης.

product-image

Μοχλός στρίψιματος για το τιμόνι

Διευκολύνει το χείρισμα και την ευελιξία με το ένα χέρι σε επίπεδο έδαφος.

product-image

Υγρό σφραγιστικό ελαστικών “Plattfuss-Stop”

Μειώνει τους χρόνους βλάβης λόγω σκασμένων ελαστικών (950ml)

» read on
